Single-phase Hybrid
Inverter(grid-connected)
3-6kW

Up to 120A max charge/discharge current
Up to 15A MPpT current input to support high-power solar panels
Support off-grid application of diesel generators Ups level switching time (<10ms) supporting critical loads all the time
Flexible schedule for inverter charging and discharging time

Single Phase Hybrid
Inverter(grid-connected)
6-10kW

Up to 208A max chargedischarge current
Up to 44A of MPPT current input to support high-power solar panels
Supports pure off grid applications with generator
Support intelligent load and motor load connection
Degree of protection:lP66
UPS level switching time (<10ms) supporting critical loads all the time

Three Phase Hybrid
Inverter(on-grid)
8-12kW

UPS level switching time (<10ms) supporting critical loads all the time
Flexible schedule for inverter charging and discharging time
Support three-phase imbalance on backup output port
Degree of protection:IP66
2 MPPT and 4 DC input; Max 26A DC input current

Three Phase Hybrid
Inverter(on-grid)
15-20kW

Up to 50A max charge/discharge current
IP66 high ingress protection
UPS level switching time (<10ms) supporting critical loads all the time
Support three-phase imbalance on backup output port
Supports up to 16 parallel machines
Supports pure off grid applications with generator

Single Phase Hybrid
Inverter (off grid)
4-10.2kW

Pure sine wave solar inverter(off Grid)
Power factor 1.0
Inverter can run without battery
Automatic activation with built-in lithium battery
Built in 160A(7.2kw/8.2kw)/180A(10.2kw)
High PV input voltage range(90~500VDC)
One-key restoration to factory Settings

C&I Energy Storage Converter Module

Three level modular design, bidirectional energy conversion
On demand allocation, peak shaving and valley filling, local automatic operation
No vulnerable parts, modular with N+1 redundancy

C&I Energy Storage Converter

Switching time between on-grid and off-grid:<20ms
Maximum efhciency>99.1%
Support parallel operation, support diesel-electric connection,weak grid connection SCR<1.5

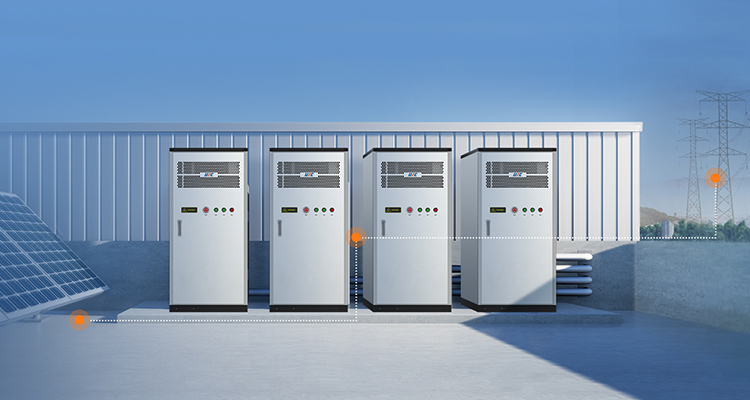

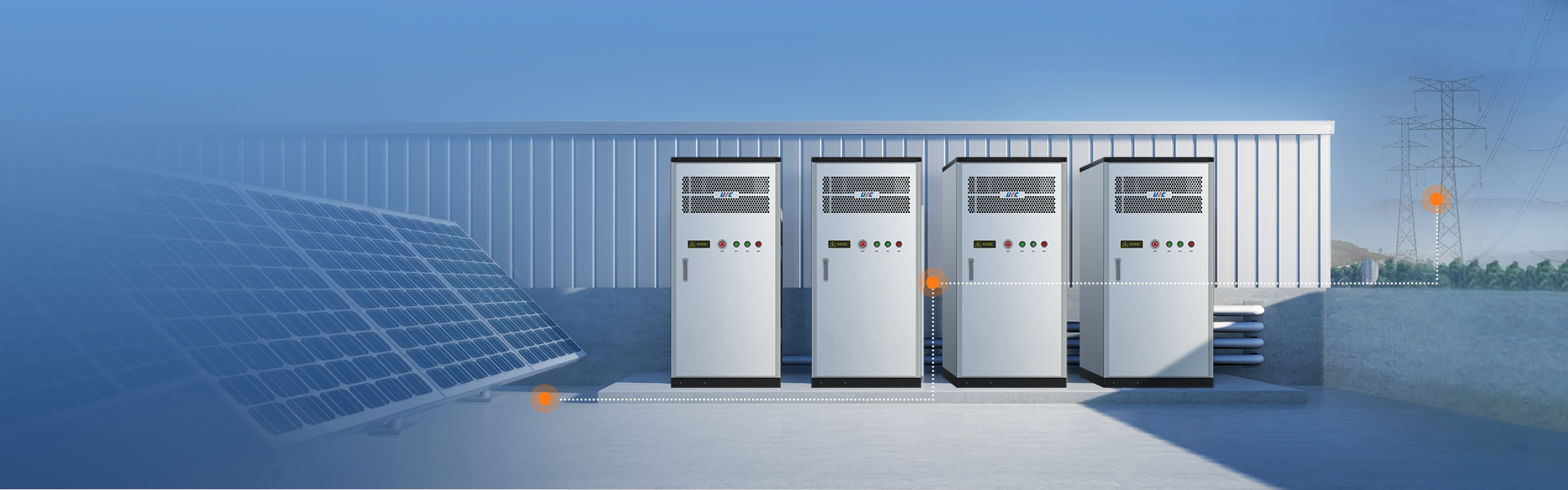

C&I Energy Storage System

High quality battery cells have a long cycle life, superior performance, good consistency, safety and reliability, and a cycle life of ≥ 6000 times
Design lifespan>; 10 years
Integrated design, single cabinet PACK, PCS, EMS, highly integrated fire protection system, high space utilization rate

Three-phase Photovoltaic Inverter10-25K

IP66 highprotection level
MPPT curent 32A, suitable for high-power components
IP66 highprotection level
Adaptive complex power grid
Intelligent remote monitoring and maintenance to enhance operational efficiency
Support anti backflow control

Three-phase photovoltaic inverter25-50K

Maximum MPPT current 40A, suitable for high power anddouble-sided groups
Built-in PlD repair function to improve the power generationperformance of components
IP66 high protection level
Quick-plug terminal design, simple and fast wiring
OTA online fmware remote upgrade, worry-free system update

Three-phase Photovoltaic Inverter80-110K

Maximum efhciency 98.7%, ultra-low starting voltage,ultra-wide voltage range
Supports 1.5 times DC over-capacity, adapts to highcurrent components up to 20A
High protection level lP66 intelligent air cooling
Supports DC arc intelligent detection (optional) Possessadaptability to weak power grids
One-time frequency modulation, P-F, Q-U and otheroperating modes

PV and Battery All-In-One

Up to 120A max charge/discharge current
Support off-grid application of diesel generator
UPS level switching time (<10ms) supportingcritical loads all the time
Support grid connected operation
Flexible schedule the inverter charging anddischarging time.
of MPPT current input to power solar panels

PV and Battery All-In-One

Up to 120A max charge/discharge currente
Support off-grid application of diesel generator
Support grid connected operation
Flexible schedule the inverter charging anddischarging time
Input to support high-power solar panels

Battery Pack(Rack-Mounted)

Small size and light weight
Screen direct selection inverter communication
The standard cycle life exceeds 5000 times
Accurately estimate the state of charge of the battery pack, that is, the remaining battery capacity, to ensure that the battery pack's power is maintained within a reasonable range
Multiple parallel machines for easy expansion; Automatic addressing, no need to dial code
Easy installation, convenient operation and maintenance

Battery Pack(Floor Installation)

Summarize all battery information on both Chinese and English display screens, and communicate directly with the inverter on the screen
One click power on/off of the system
Automatic coding and parallel operation between PACK groups without the need for manual settings
Bluetooth+WiFi solution, can be viewed and operated remotely, and can be accessed through a mobile app
Multi cluster parallel operation, supporting up to 32 battery packs in parallel

Battery Pack(Wall-Mounted)

Wall mounted installation, saving space
Multiple parallel machines, convenient for expansion, automatic addressing, no need to dial code
Standard LCD display screen, real-time understanding of battery status, screen direct inverter
Communication protocol
Environmentally friendly and pollution-free materials, free of heavy metals, green and environmentally friendly
The standard cycle life exceeds 5000 times
Remote viewing error, online software upgrade

Stacking High-Voltage Batteries

Optical Storage (off grid) Integrated Machine
