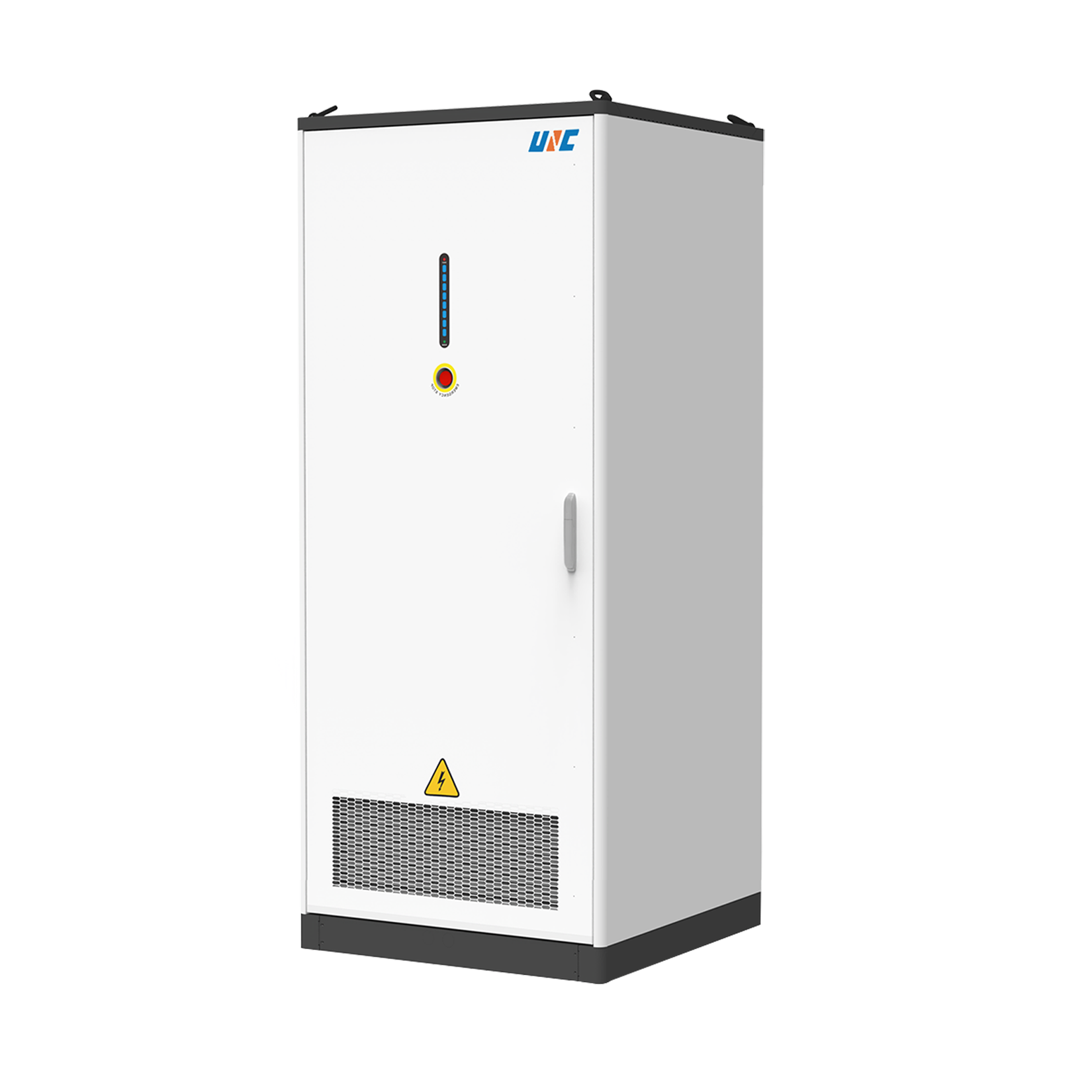

Optical Storage (off grid) Integrated Machine

Product Center Industrial and Commercial Energy Storage
Parameter
Manual

Position：

FrontPage>Product Center>Industrial and Commercial Energy Storage

Product Advantages

Safe and reliable

Comes with a built-in soft start,

Detecting battery cluster current and voltage, short circuit protection,

Remote connection and disconnection functions


Intelligent

Intelligent remote operation, management, and control

AII in one

Integrated design,

Modular installation

Suitable for all scenarios of industry and commerce


快速 高速.png
Quick response

Self developed battery management system

Connect the power grid and battery

Fast scheduling response


Multiple photovoltaic interfaces

Integrate 2-8 MPPT channels

Capable of connecting multiple photovoltaic interfaces

Automatic tracking system power changes


Intelligent early-warning

Comprehensive three-dimensional fire protection,

Multiple protections


Technical Specifications

ModelGWESTS50-100kWh-400-A
DC

Cell typeLFP280Ah
Battery PACK Capacity and Configuration14.336kwh/1p165
Battery capacity/PACK quantity100kwh/7，optional 115kwh/8
Battery voltage range314V-403V
Rated charge discharge rate and current0.5C,140A
Maximum charging and discharging current280A
Number of cycles≥8000
Number of temperature detections56
DC/DC module parameters

Low voltage side voltage range150V-1000V
Minimum voltage at full power on the low voltage side340V
Rated current160A
Rated power50kW
system parameter

Dimensions (Wx H x D mm)1050*1050*2050
Weight（kg）1800G
Protection gradeIP54
Cooling methodIntelligent air cooling
Allowable ambient temperature (℃)-30-55（Reduce usage beyond 40 ℃）
Allow relative humidity0-95%（No condensation）
Maximum system efficiency3000m（＞2000mReduced usage）
Noise＜70dB
Networking method4G/Wifi/Ethernet TCP/IP
DisplayLCD touch
