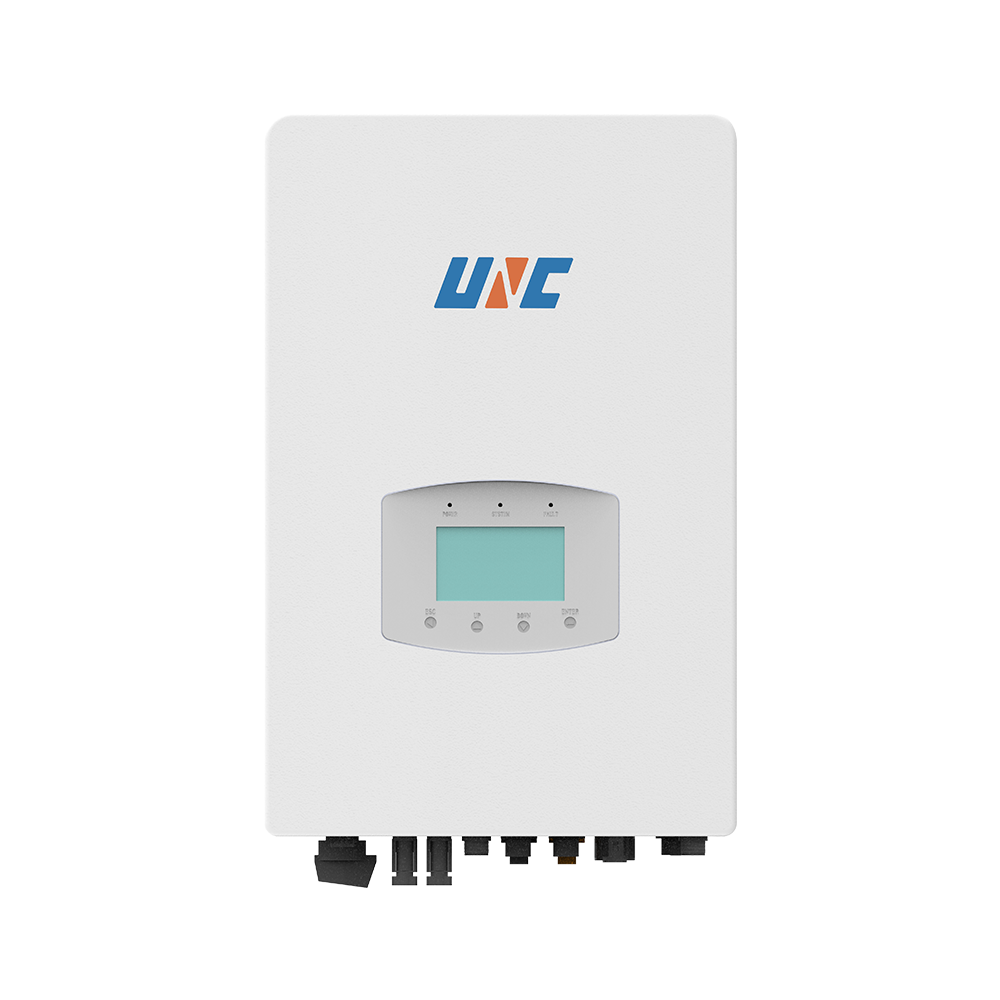

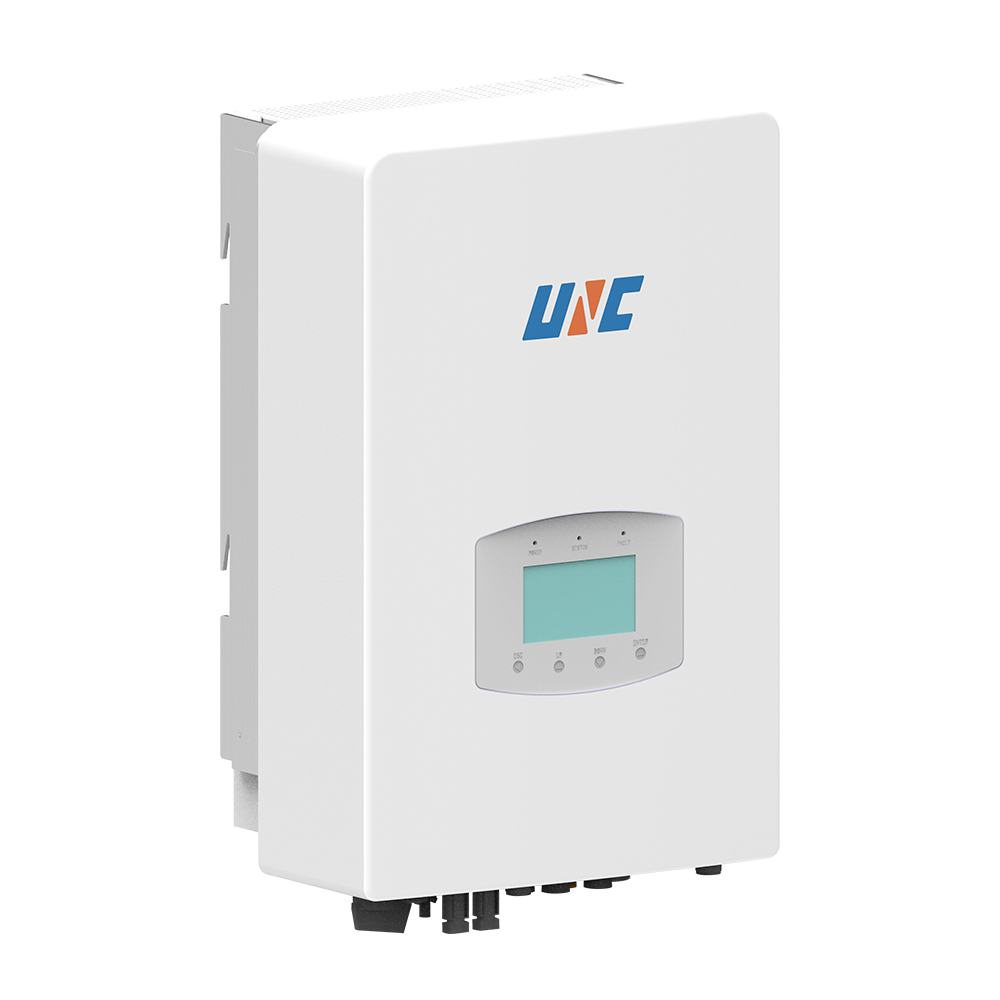

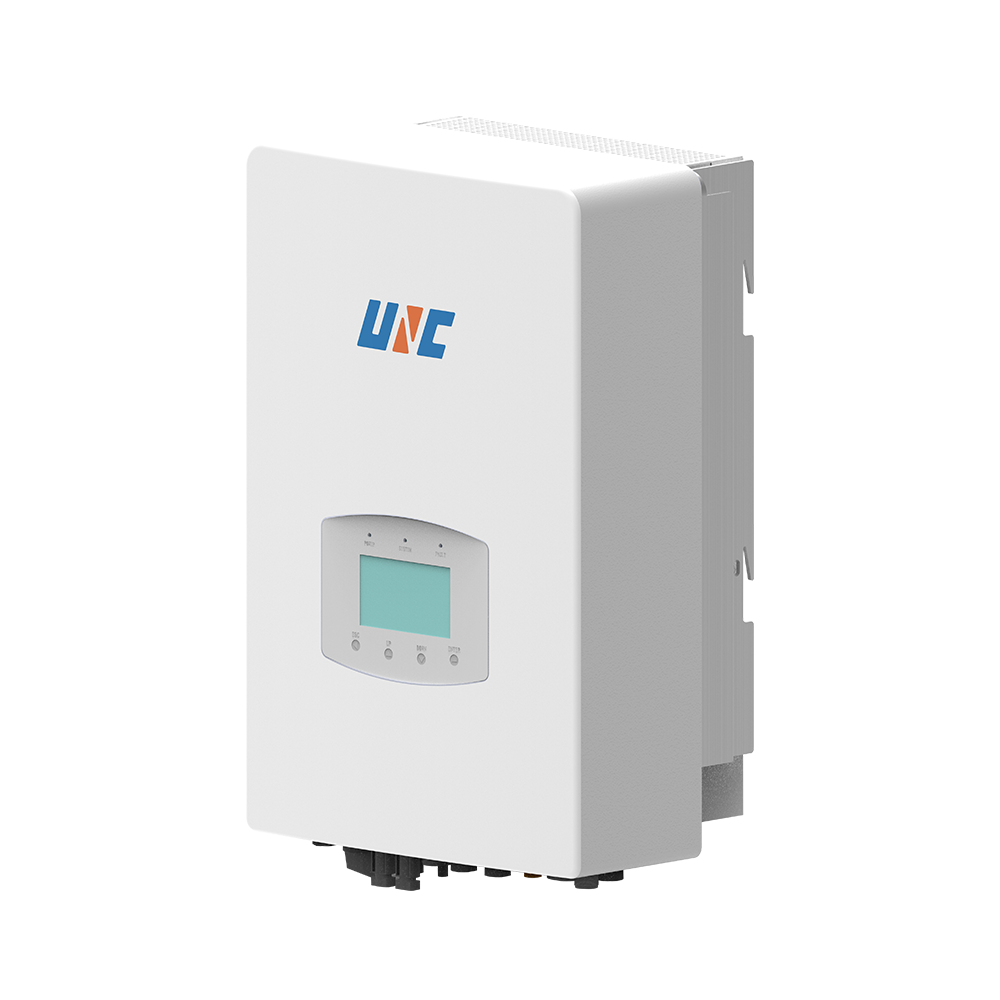

Single-phase Hybrid
Inverter(grid-connected)
3-6kW

Household Energy Storage Hybrid Inverter
Parameter Manual

Position：

FrontPage>Product Center>Household Energy Storage>Hybrid Inverter

Product Advantages

120A

Up to 120A max charging/discharging current

15A

Up to 15A MPpT current input to support high-power solar

Diesel Generator

Support communication with diesel generator

10ms

UPS level automatic switching (<10ms)


Natural Cooling

No external fans design improve reliability

Technical Specifications

Product ModelESS1-3K1P-02-LVESS1-3.6K1P-02-LVESS1.4.6K1P-02-LVESS1-5K1P-02-LVESS1-6K1P-02-LV
PV String Input Data




Recommended max. PV power5kW5.5kW8kW
Max. Input Voltage580V
Rated Input Voltage350V
Start-up Voltage120V
MPPT Voltage range90-520V120-520V
Mss.Input Current15A/15A
Max.Short-Circuit Current22.5A/22.5A
MPPT Number / String Number per MPPT2/2
Battery Data




Battery Type

Lead acid/Li-ion

Battery Voltage Range42-58V
Max. Charging/Discharging Power3kw5kw
Max. Charging/Discharging Current72A120A
CommunicationsRS485/CAN
AC Output Data




Rated Output Power3kW3.6kW4.6kW5kW6kW
Max. Output Power3.3kW4kW4.6kW5.5kW6.6kW
Max. Apparent Output Power3.3kVA4kVA4.6kVA5.5kVA6.6kVA
Rated Output Current13.6A16.4A20.9A22.7A27.3A
Max. Output Current15.1A18.2A23.2A25.2A30A
Switching Time<10ms
Rated Output Voltage/FrequencyL/N/PE 220V/230V 50Hz/60Hz
Power Factor0.8 leading ...0.8 lagging
THDv(@Linear load)<3%
THDi<2%
AC Input Data




Max apparent input power3.3kVA4kVA4.6kVA5.5kVA6.6kVA
Max. Input Current15.1A18.2A23.2A25.2A30A
Rated Input Voltage/FrequencyL/N/PE 220V/230V 50Hz/60Hz
Efficiency




Max. Efficiency97.50%
Euro Efficiency97%
Standards




SafetyIEC62109-1/-2
EMCEN61000-6-1/EN61000-6-3
General Data




Dimensions（W*H*D362mmx546mmx252mm
Cooling ConceptNatural
Weight21.5kg
Ingress ProtectionIP66
Operating Ambient Temperature-25-+60℃(>45 dcrsting)
Max. Operation Altitude3000m
CommunicationsRS485/WIFI/GPRS/LAN
