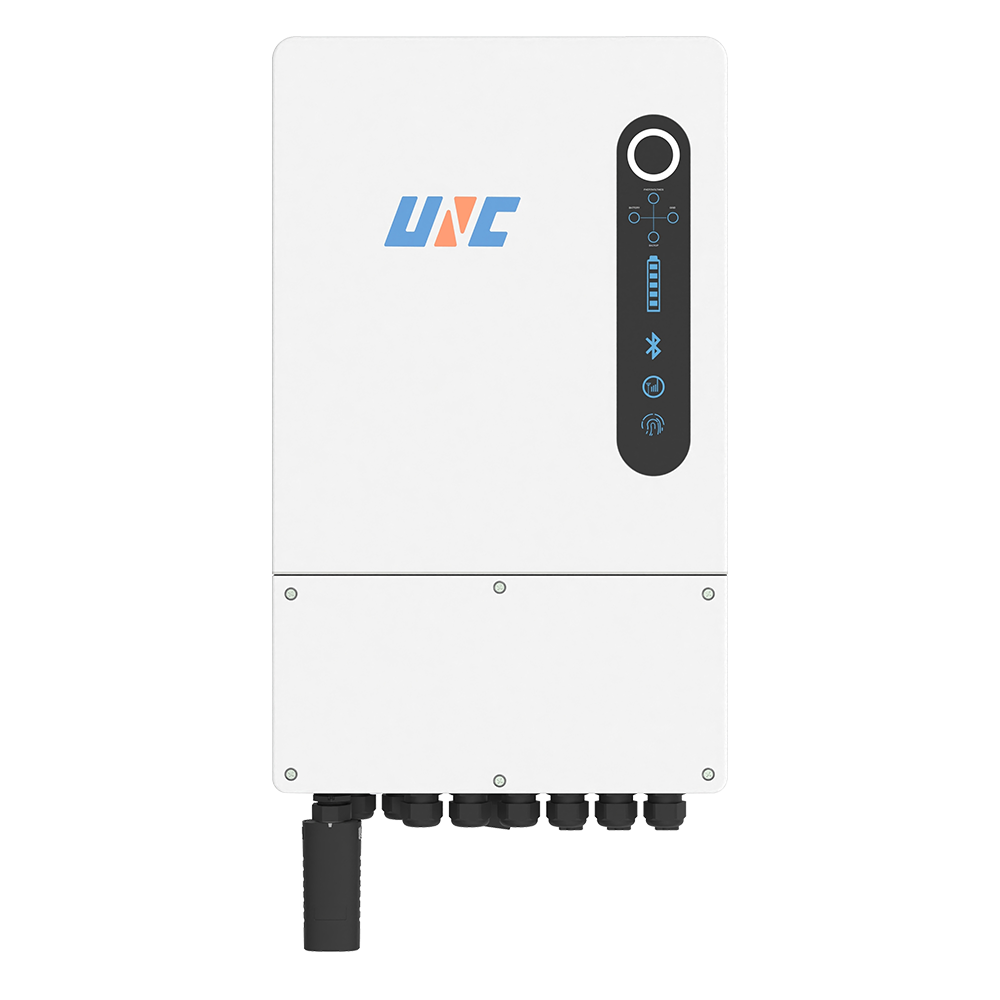

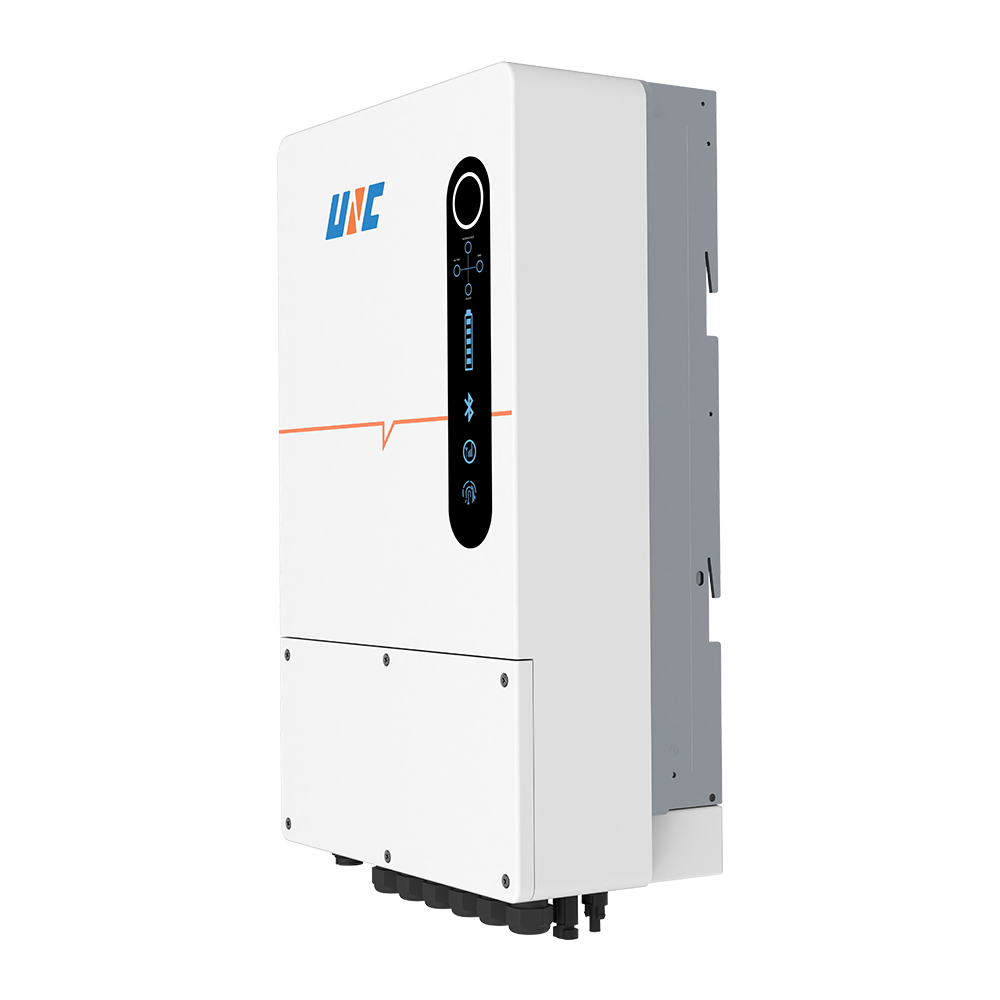

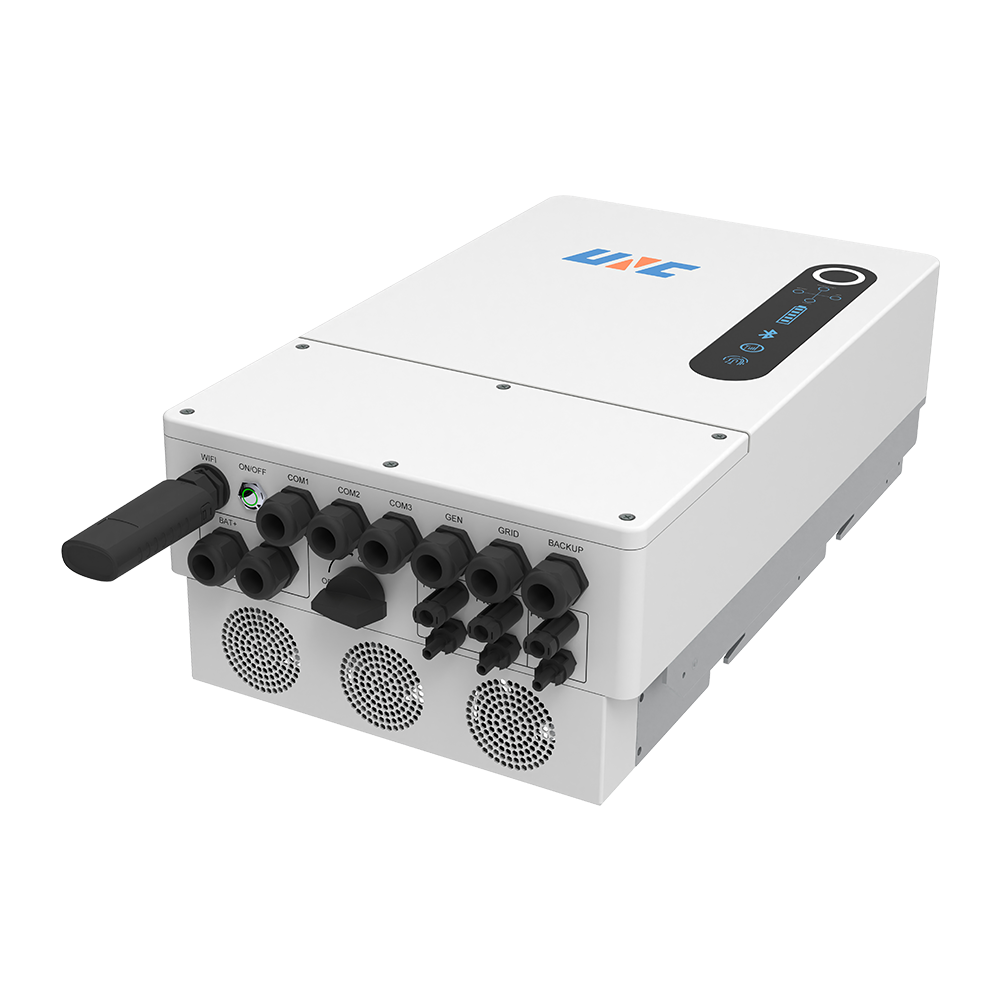

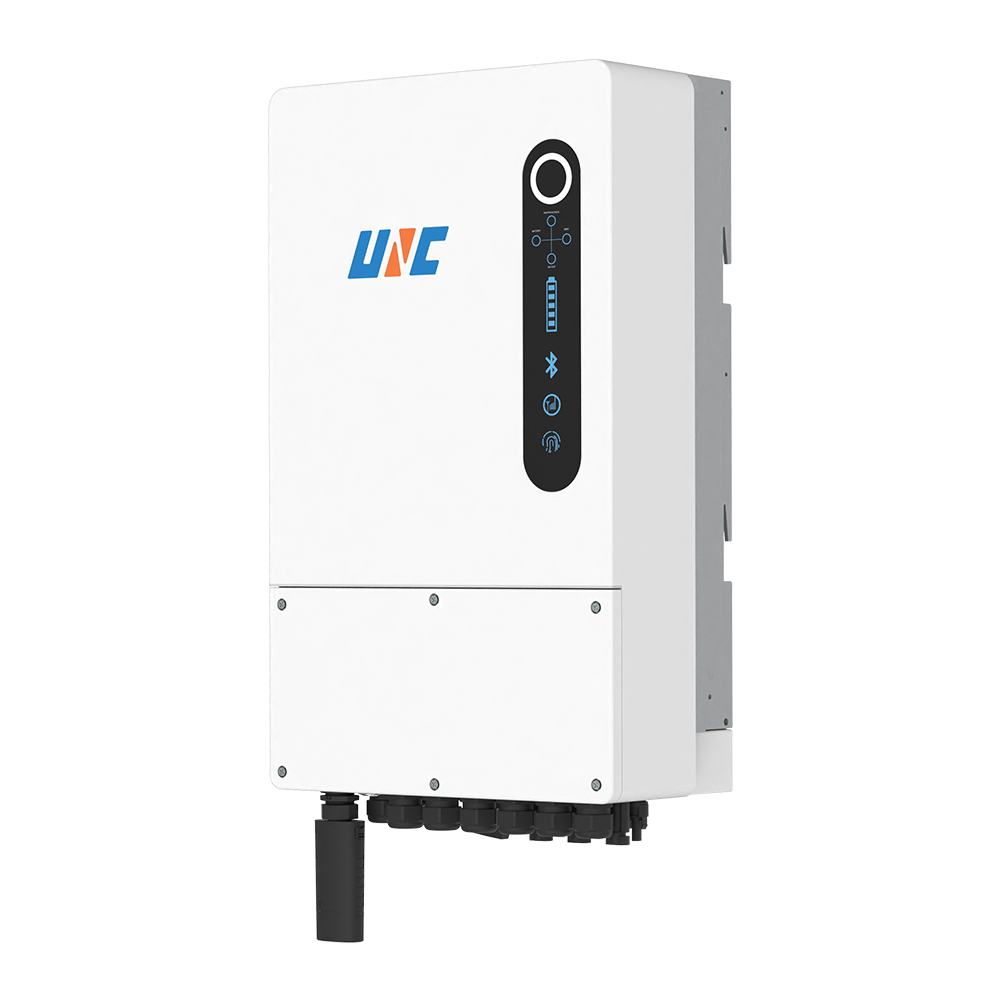

Single Phase Hybrid
Inverter(grid-connected)
6-10kW

Household Energy Storage Hybrid Inverter
Parameter Manual

Position：

FrontPage>Product Center>Household Energy Storage>Hybrid Inverter

Product Advantages

208A

Up to 208A max charging/discharging current

44A

Up to 44A of MPPT current input to support high-power solar panels

Diesel Generator

Support communication with diesel generator

电机 (2).png
Support  motor

Support intelligent load and motor load connection

IP66

Degree of protection:lP66

10ms

UPS level automatic switching (<10ms)


Technical Specifications

Product ModelESS2-6K1P-02-LVESS2-8K1P-02-LVESS2-10K1P-02-LV
PV String Input Data


Recommended Max. PV Power9kW12kW15kW
Max. Input Voltage500V
Rated Input Voltage360V
MPPT Voltage range90-425V
Max. Input Current44A/21A
Max, Short-Circuit Current
MPPT Number / String Number per MPPT2/3
Battery  Data


Battery TypeLead-acid/Li-lon
Battery Voltage Range40-60V
Max. Charging/Discharging Power6kW8kW10kW
Max. Charging/Discharging Current142A190A208A
CommunicationsRS485/CAN
Charging CurveThree-paragraph
AC Output Data（Backup/UPS Side）


Max. Output Power6kW8kW10kW
Switching Time<10ms

<2%(Linear load)
AC Output Data（On-Grid Side）


Rated Output Power6kW8kW10kW
Rated Output VoltageLN/PE,220V/230V
Rated Output Frequency50Hz/60Hz
Max. Output Current30A40A50A
Power Factor>0.99(((Lead 0.8～lag 0.8)
THDi<2%(Full load)
Efficiency


Max. Efficiency>97.5%
Euro Efficiency
Protection


Anti-islanding ProtectionAvailable
DC Reverse-polarity ProtectionAvailable
AFCI ProtectionOptional
General Data


Max. Parallel Number16
CommunicationsRS485/i-Fi(Optiona)/4G(Optiona)LAN(Optional)
Dimensions（W*H*D）620*350*196 mm
Weight25.7kg27kg
Operating Ambient Temperature-40～+60℃(>45℃Reduction)
Ingress ProtectionIP66
Cooling ConceptNaturalIntelligent air-cooled
