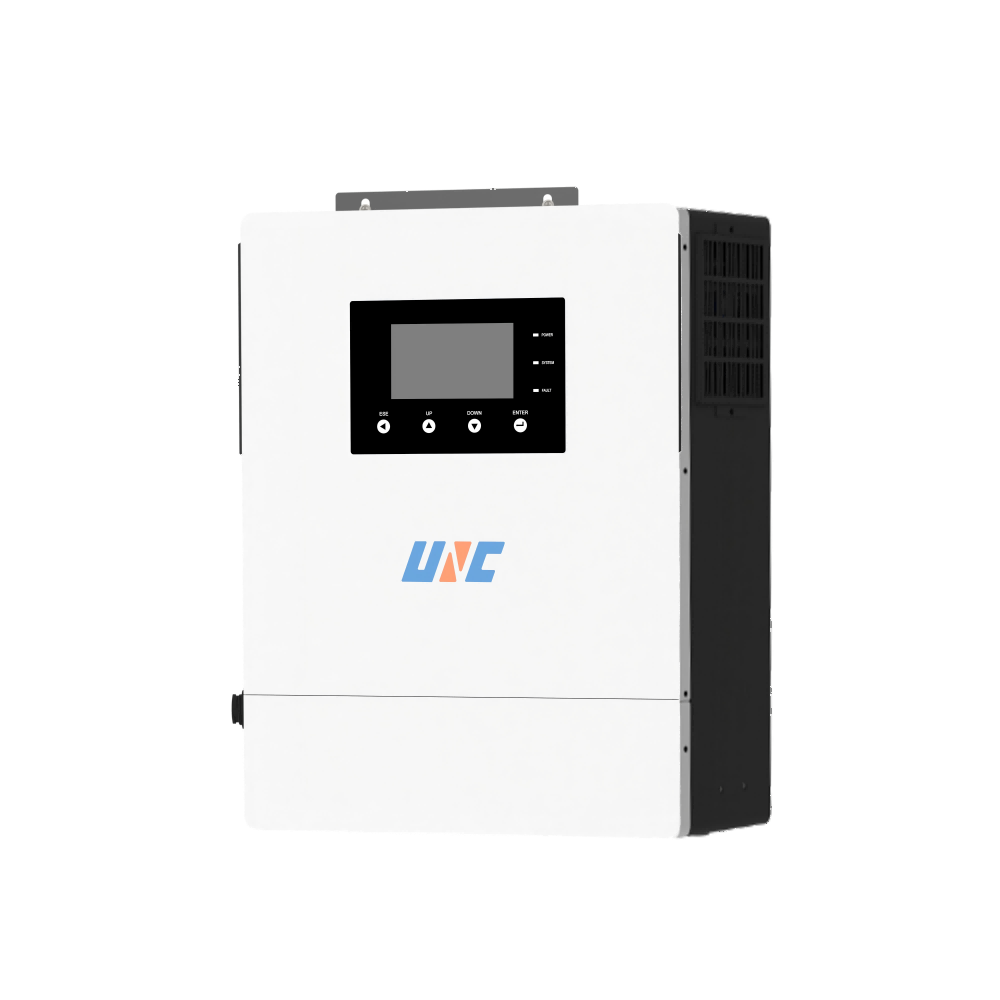

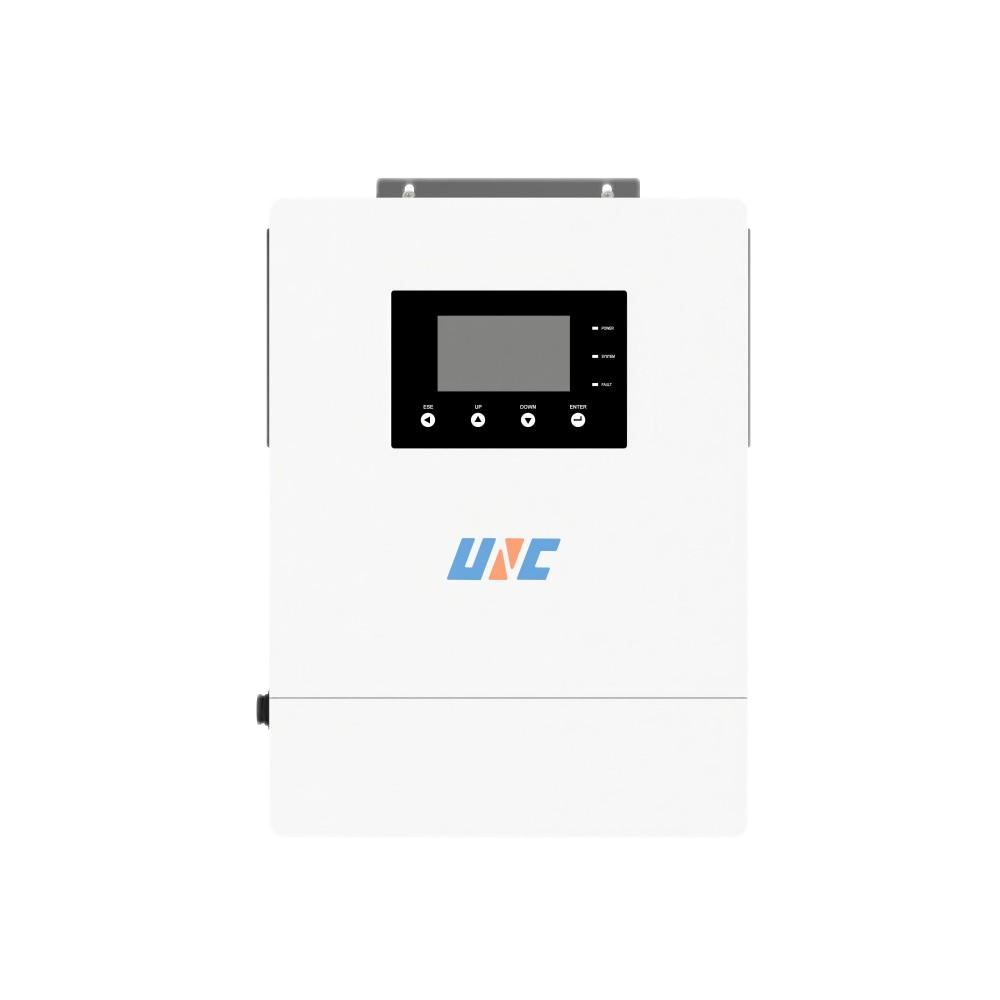

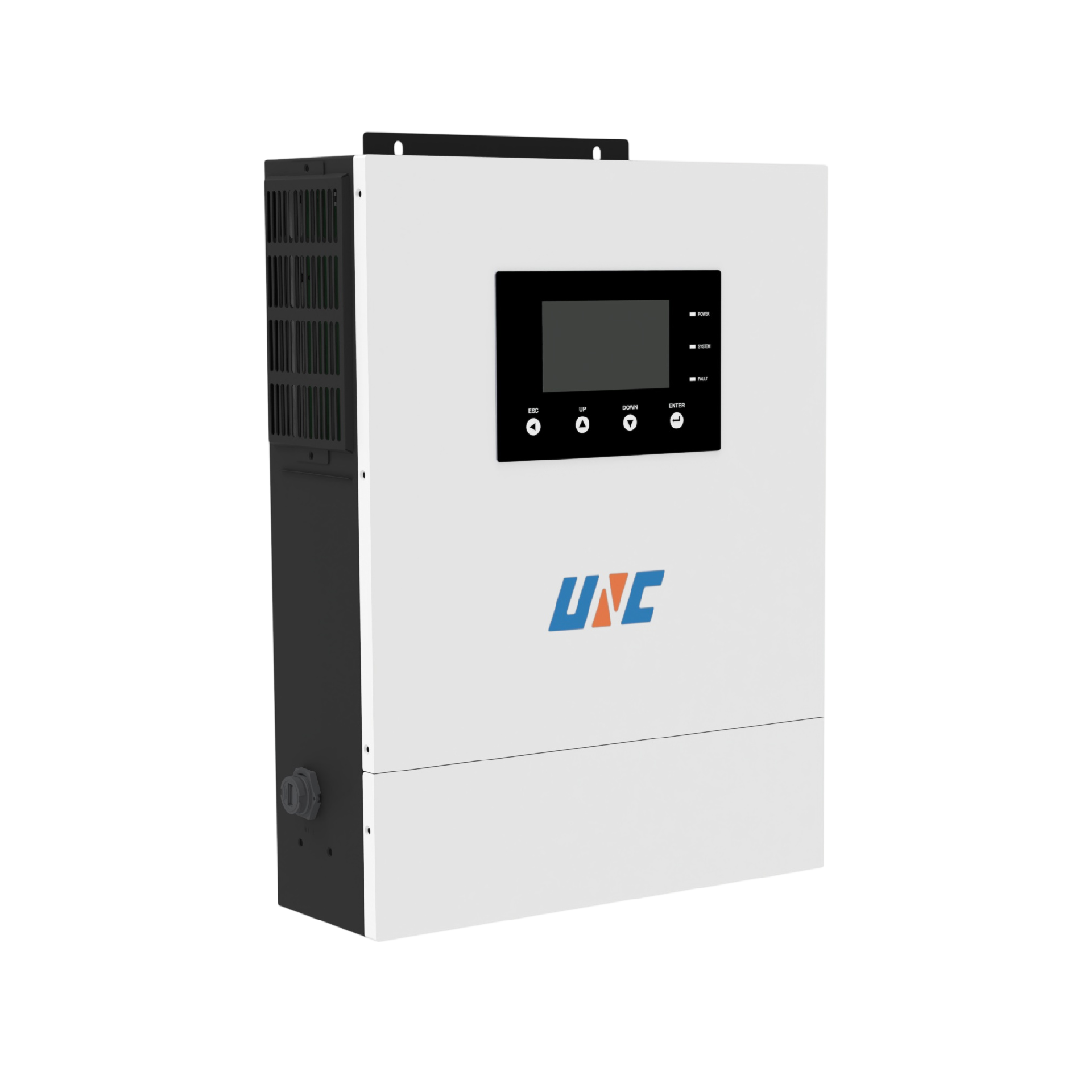

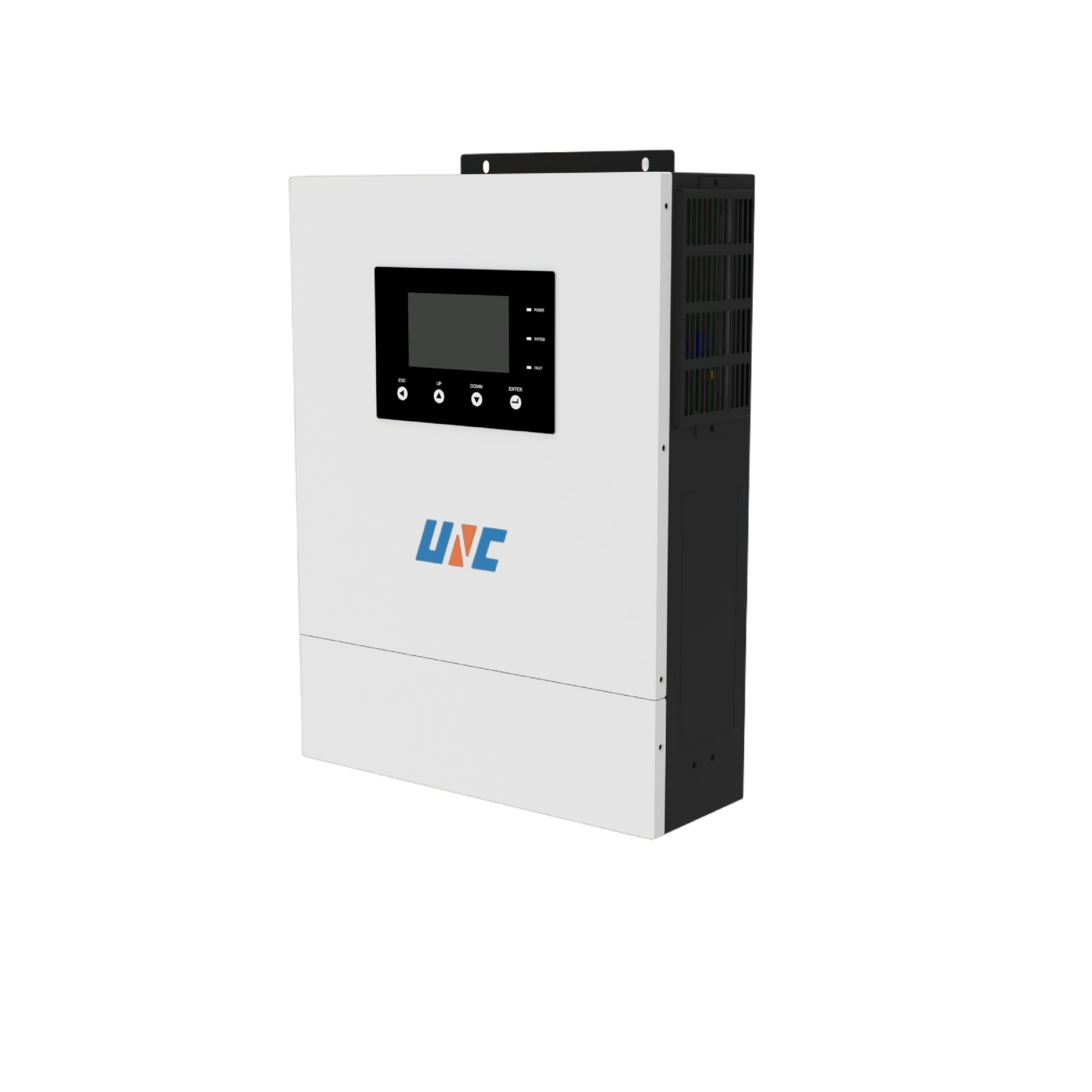

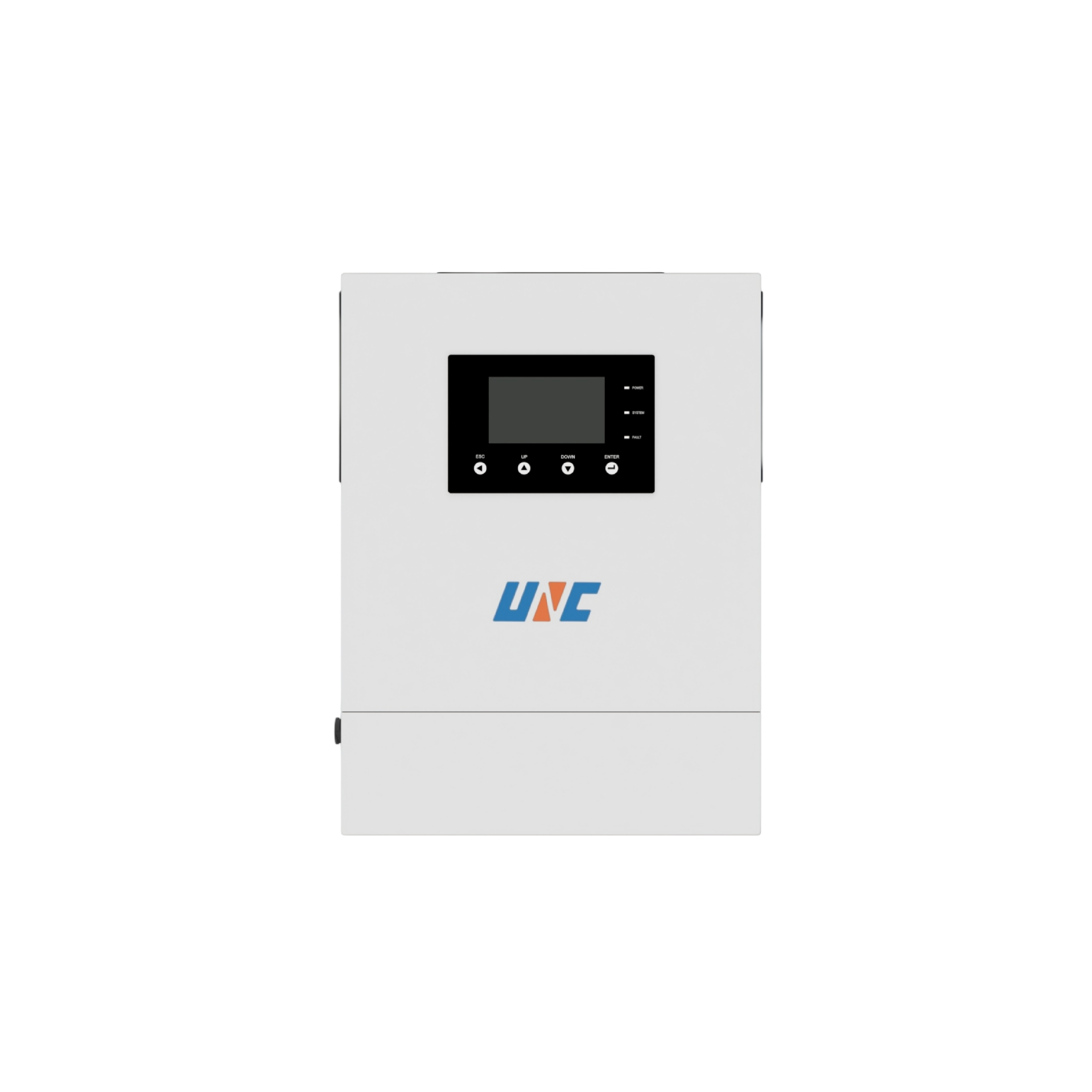

Single Phase Hybrid
Inverter (off grid)
4-10.2kW

Household Energy Storage Hybrid Inverter
Parameter Manual

Position：

FrontPage>Product Center>Household Energy Storage>Hybrid Inverter

Product Advantages

Pure

Pure sine wave solar inverter(off Grid)

Power factor

Power factor 1.0

WFI&GPRS

WFI&GPRS available for iOS and Android

Without battery

Inverter can run without battery

Automatic

Automatic activation with built-in lithium battery

Fast Charging

Built in 160A(7.2kw/8.2kw)/180A(10.2kw) charger

Wide Range

PV input voltage range (90~500VDC)

One-key restoration

One-key restoration to factory Settings

Technical Specifications

Product ModelMIC-3.6KWMIC-4.2KWMIC-6.2KWMASS-7.2KWMASS-8.2KWMASS-10.2KW
Recommended Max. PV Power6200W6200W6200W8200W8200W10200W
Rated Output Power3800W/3800VA4200W/4200VA6200W/6200VA7200W/7200VA8200W/8200VA10200W/10200VA
Max. Solar Charging Current120A160A
Photovoltaic Parameters ——PV String Input Data





Nominal Voltage/Maximum Voltage——Rated Voltage/Max. Voltage360V/500V
Start-up Voltage/initial Feeding Voltage——Start-up Voltage/Initial Feeding Voltage90V/120V
MPPT Voltage Range90V-450V
MPPT Tracks The Number Of input Channels/Maximum input Current—— MPPT Number/Max. Input Current1/18A1/22A1/18A2/18A
AC Output Data





Rated Output Voltage/Frequency120V 50Hz220/230/240VAC 50/60Hz220/230/240VAC 50/60Hz
Rated Output Current30A18.2A27.0A31.3A35.6A44.3A
Voltage Range /Frequency90-280VAC or170-280VAC 50/60Hz
Max. Input Current30A40A50A
Efficiency





Max. Efficiency (Solar to AC)98%
Two Loads Output Data





Full Load3600W4200W6200W7200W8200W10200W
Max. Main Load3600W4200W6200W7200W8200W10200W
Max. Second Load(Battery Mode)1400W1400W2067W2400W2733W3400W
AC Output Data (Battery Mode)





Rated Output Voltage120V 50Hz220/230/240VAC
Output WaveformPure sine wave
Efficiency (DC to AC)94%
Battery Data





Rated Battery Voltage24VDC48VDC
Max. Solar Charging Current120A160A180A
Max. AC Charging Current100A140A160A
General Data





Dimension D*W*H（mm）423*334*110530*420*160
Weight（Kgs）8.51014.515
CommunicationsRS232/RS485/WIFI/GPRS
Operating Ambient Temperature-10~50℃
