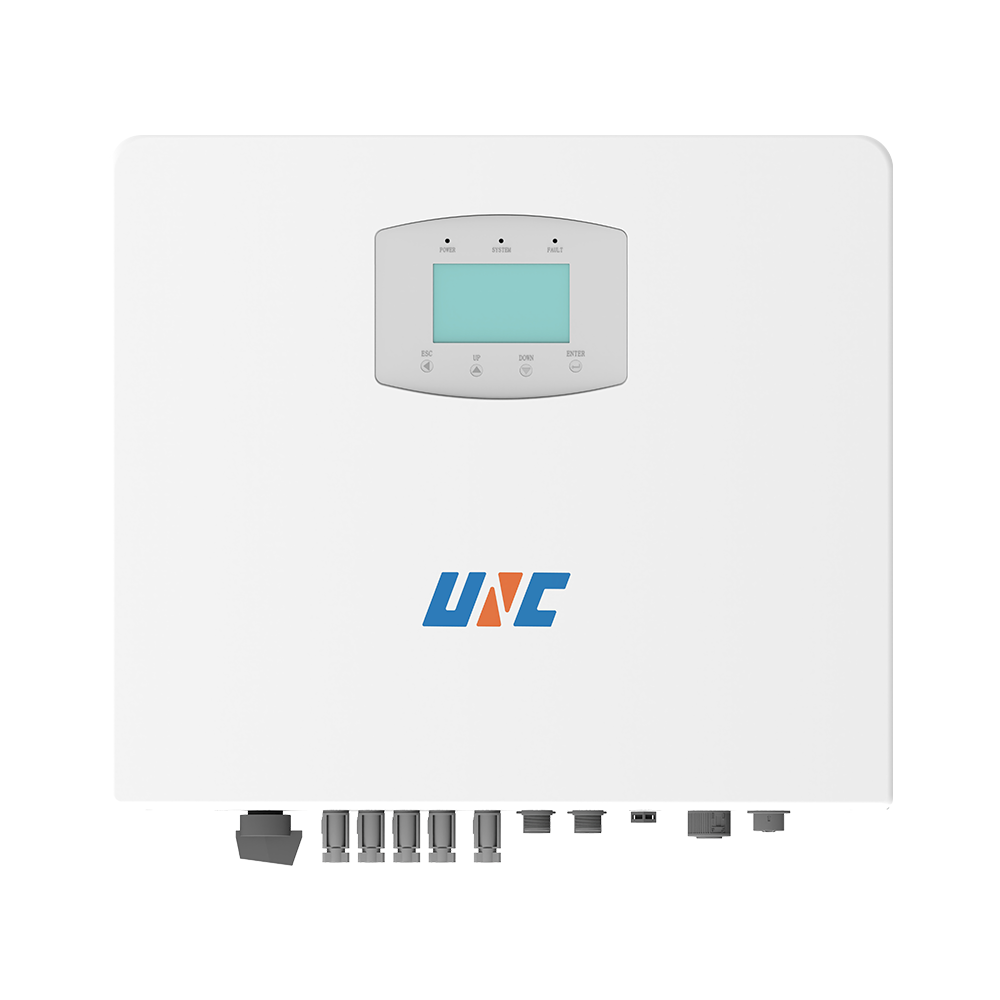

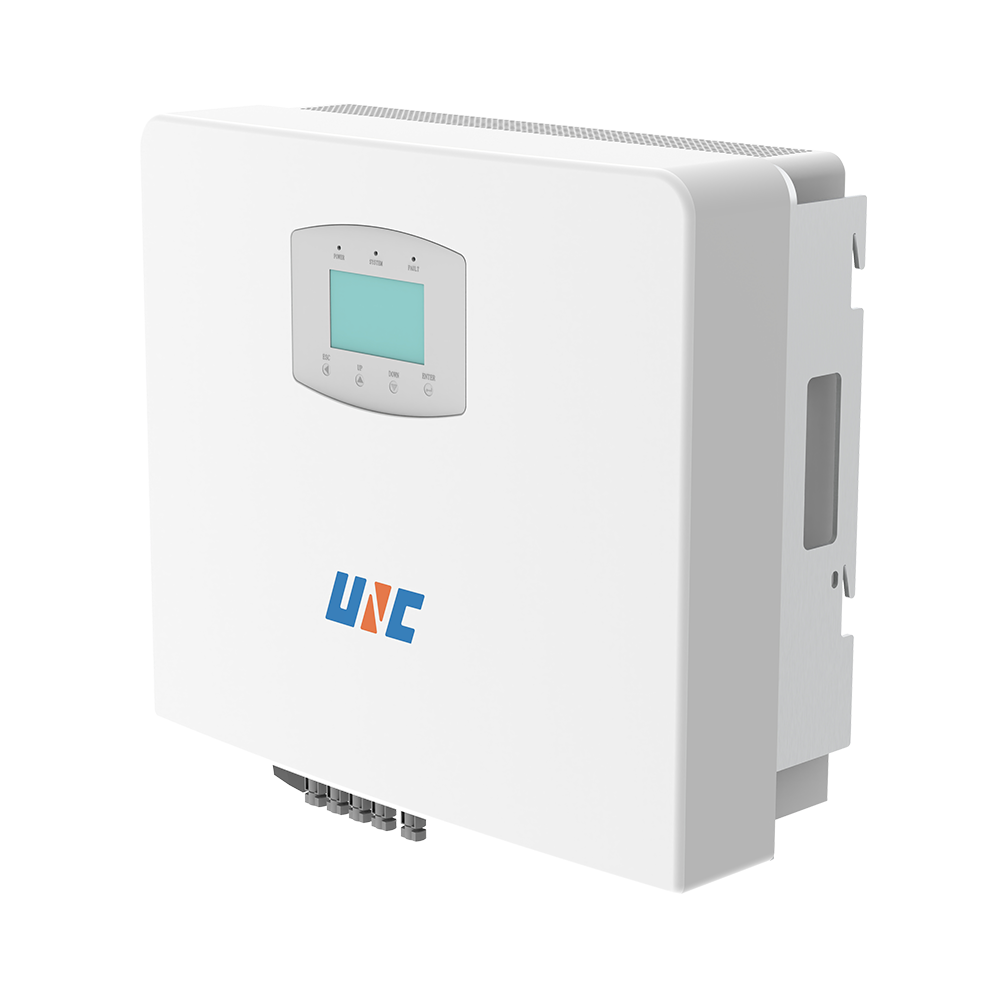

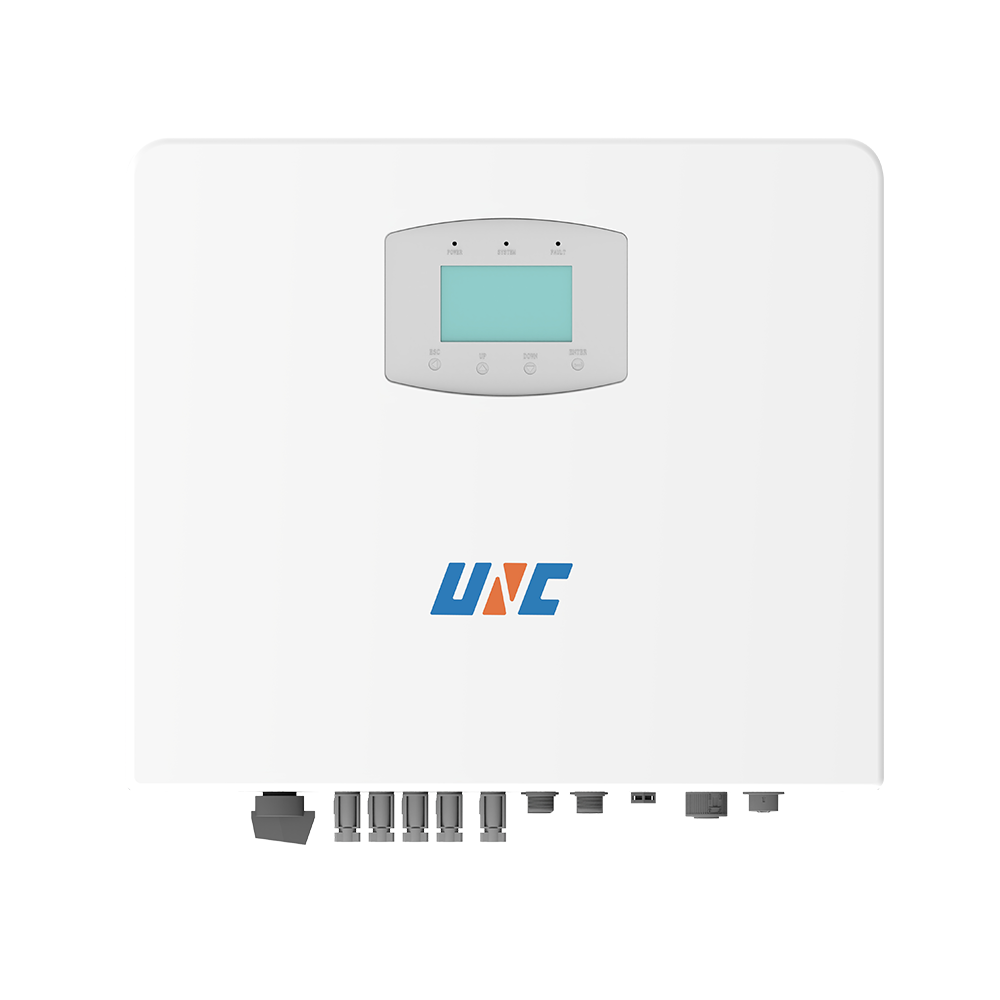

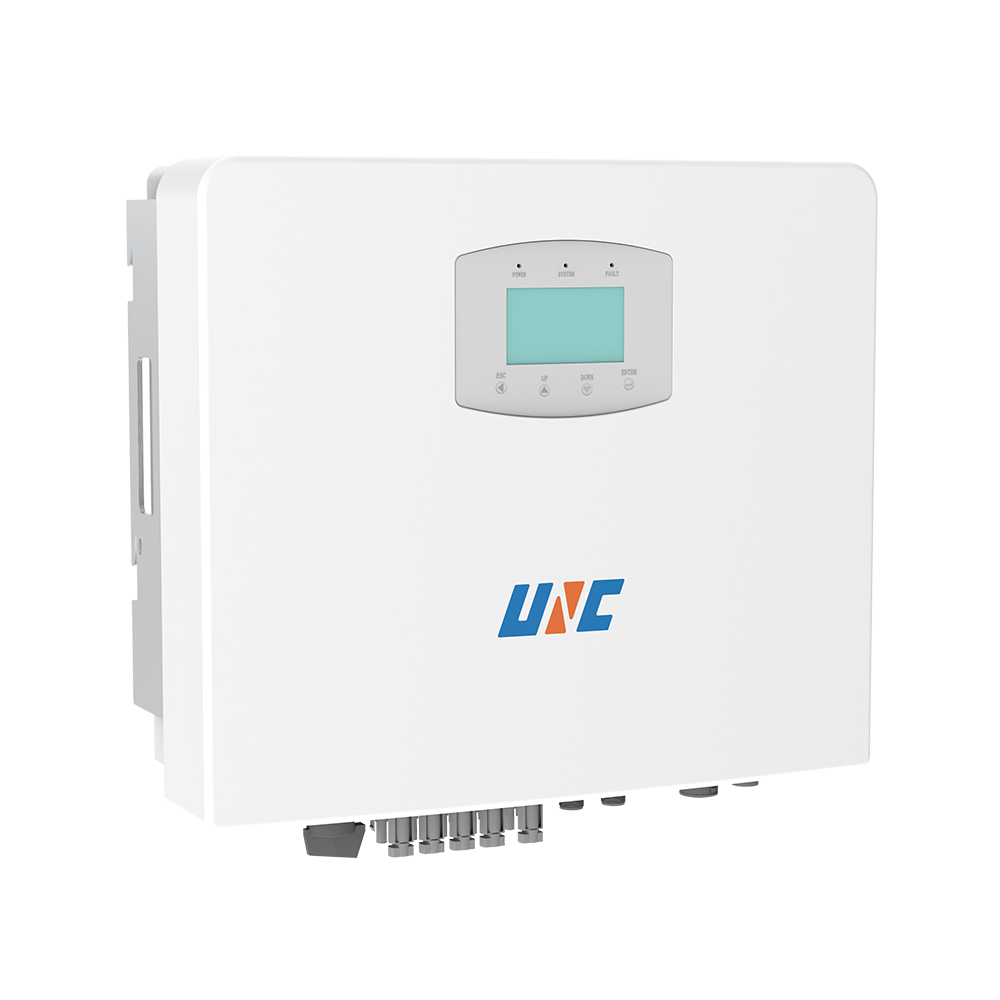

Three Phase Hybrid
Inverter(on-grid)
8-12kW

Household Energy Storage Hybrid Inverter
Parameter Manual

Position：

FrontPage>Product Center>Household Energy Storage>Hybrid Inverter

Product Advantages

10ms

UPS level automatic switching (<10ms)


Flexible schedule

Flexible schedule for inverter charging and discharging time

Three-phase imbalance

Support three-phase imbalance on backup output port

提升 保护.png
IP66

Degree of protection:IP66

26A

2 MPPT and 4 DC input; Max 26A DC input current

Technical Specifications

Product ModelESS1-8K3P-02-HVESS1-10K3P-02-HVESS1-12K3P-02-HV
PV String Input Dat


Recommended Max. PV Power12kw15kW18kW
Max. Input Voltage1000V
Rated Input Voltage600V
Start-up Voltage200V
MPPT Voltage range200-850V
Max. Input Current26A/26A
Max, Short-Circuit Current39A/39A
MPPT Number / String Number per MPPT2/4
Battery Data


Battery TypeLi-ion
Battery Voltage Range180-600V
Max. Charging/Discharging Power8kW10kW
Max. Charging/Discharging Current30A
CommunicationsRS485/CAN
AC Output Data


Rated Output Power8kW10kW12kW
Max. Output Power8.8kW11kW13.2kW
Max. Apparent Output Power8.8kVA11KVA13.2kVA
Rated Output Current12.1A15.2A18.2A
Max. Output Current13.4A16.7A20A
Switching Time<10ms
Rated Output Voltage/Frequency3L/N/PE 380V/400V 50Hz/60Hz
Power Factor0.8 leading ~0.8lagging
THDv(@Linear load)<3%
THDi<2%
AC Input Data


Max，Apparent Input Power8.8kVA11KVA13.2kVA
Max. Input Current13.4A16.7A20A
Rated Input Voltage/Frequency3L/N/PE 380V/400V 50Hz/60Hz
Efficiency


Max. Efficiency98.10%
Euro Efficiency97%
Standards


SafetyIEC62109-1/-2
EMCEN61000-6-1/EN61000-6-3
General Data


Dimensions（W*H*D）556mmx482mmx196mm
Cooling ConceptNatural
Weight27.5kg
Ingress ProtectionIP66
Operating Ambient Temperature-25~60℃（>45 derating）
Max. Operation Altitude3000m
CommunicationsRS485/WIFI/GPRS/LAN
