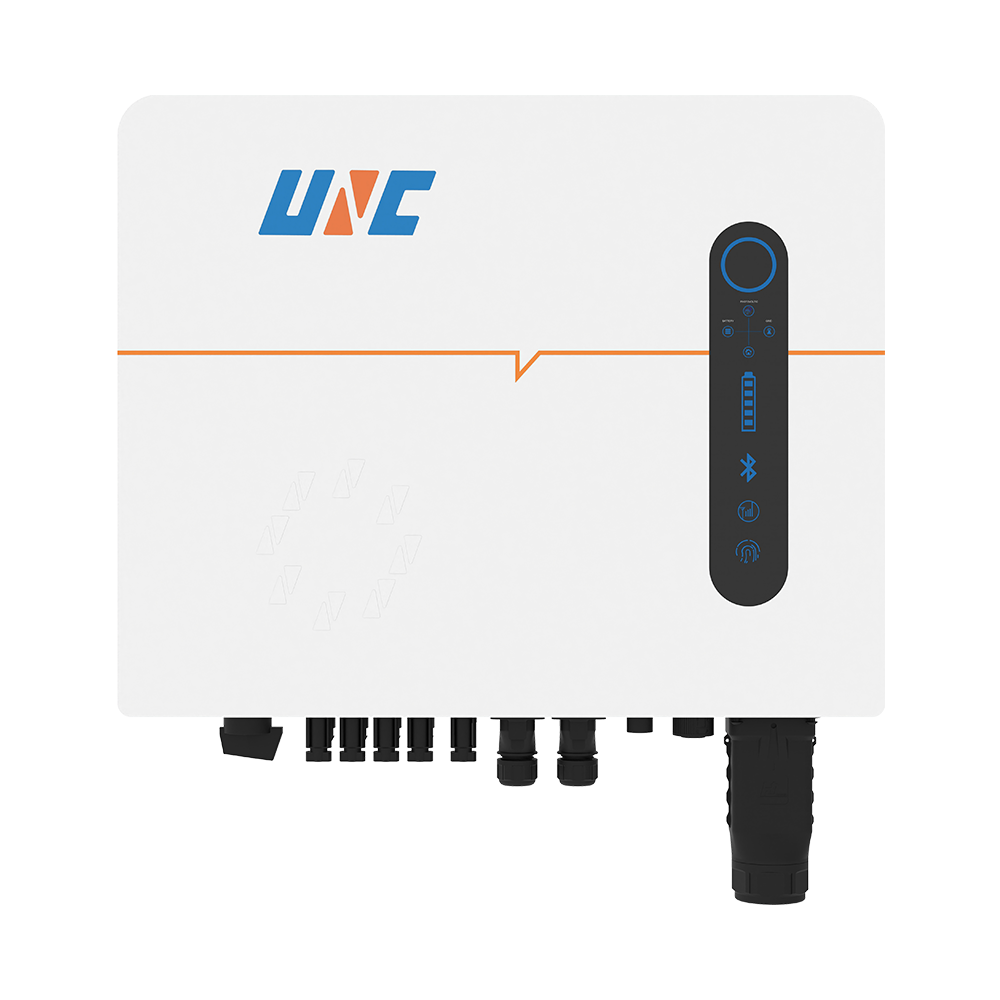

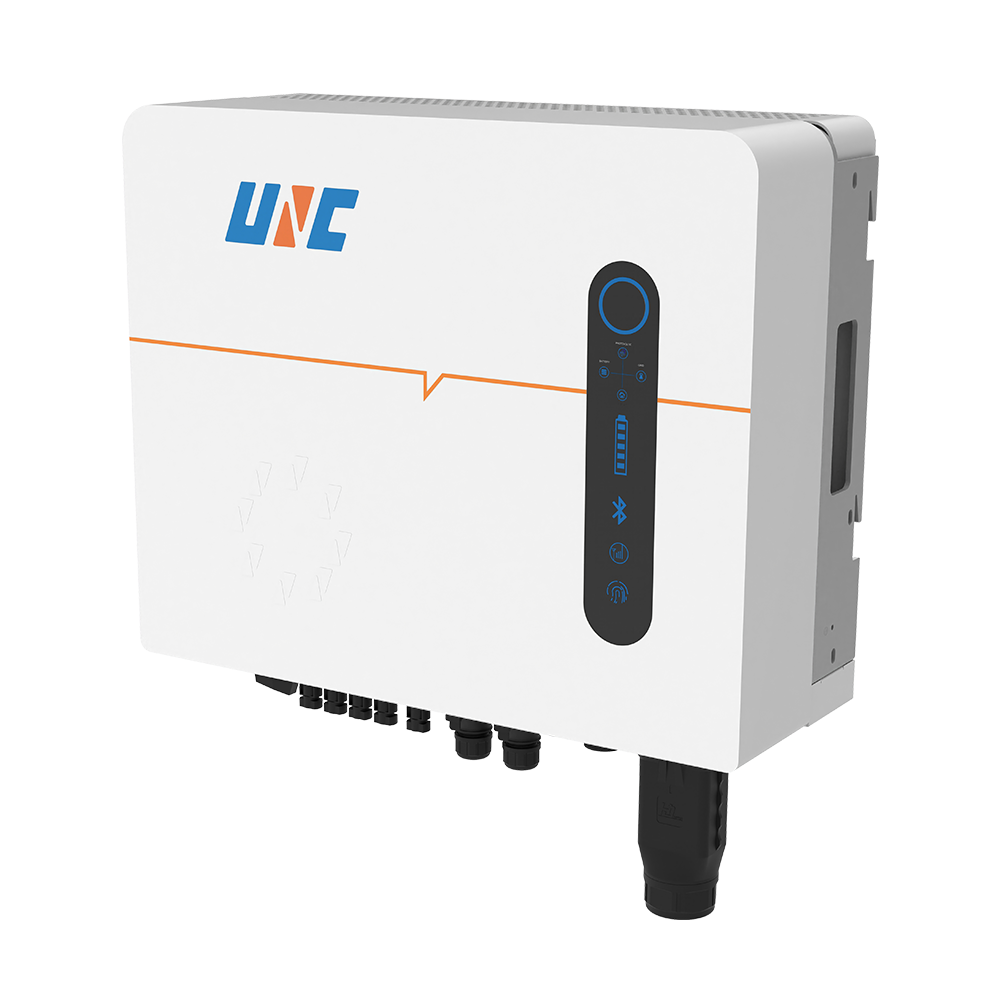

Three Phase Hybrid
Inverter(on-grid)
15-20kW

Household Energy Storage Hybrid Inverter
Parameter Manual

Position：

FrontPage>Product Center>Household Energy Storage>Hybrid Inverter

Product Advantages

50A

Up to 50A max charging/discharging current

IP66

IP66 high ingress protection

10ms

UPS level automatic switching (< 10ms)

Three-phase imbalance

Support three-phase imbalance on backup output port

电机 (2).png
Parallel Working

Up to max 16 units

Diesel Generator

Support communication with diesel generator

Technical Specifications

Product ModelESS1-15K3P-02-HV-FESS1-20K3P-02-HV-F
Input DCPV —— PV String Input Data

Recommended Max. PV Power22.5kw30kW
Max. Input Voltage1000V
Rated Input Voltage620V
MPPT Voltage range120V
Max. Input Current200-850V
Continuous Input Current32A/32A
MPPT number/Max. Input strings number2/4
Battery Data

Battery TypeLithium batteries
Battery Voltage Range120-600V
Max. Charging/Discharging Power15kW20kW
Max. Charging/Discharging Current50A
CommunicationsRS485/CAN
Charging CurveThree-paragraph
AC Output Data (Backup/UPS Side)

Max. Output Power15kW20kW
Switching Time<10ms
THDi<2%(Linear load)
AC Output Data (On-Grid Side)

Rated Output Power15KW20KW
Rated Output Voltage3LNIPE，380V1400V
Rated Output Frequency50Hz/60Hz
Rated Output Current25A33.3A
Max. Output Current34.1A45.5A
Power Factor>0.99(Lead 0.8 - lag 0.8)
THDi<2%(Full load)
Efficiency

Max. Efficiency>97.5%
Euro Efficiency--
MPPT Efficiency>99.5%
Protection

Anti-islanding ProtectionAvailable
DC Reverse Polarity ProtectionAvailable
100% Three-phase Unbalanced LoadAvailable
AFCI ProtectionOptional
General Data

Maximum Number of Parallel Machines16
CommunicationsRS485/Wifi/GPRS/LAN
Dimensions（W*H*D）567*497*237mm
Weight29kg31.6kg
Operating Ambient Temperature-25~60℃（＞45derating）
Ingress ProtectionIP66
Max. Operation Attitude--
Cooling ConceptNaturalIntelligent air-cooled
