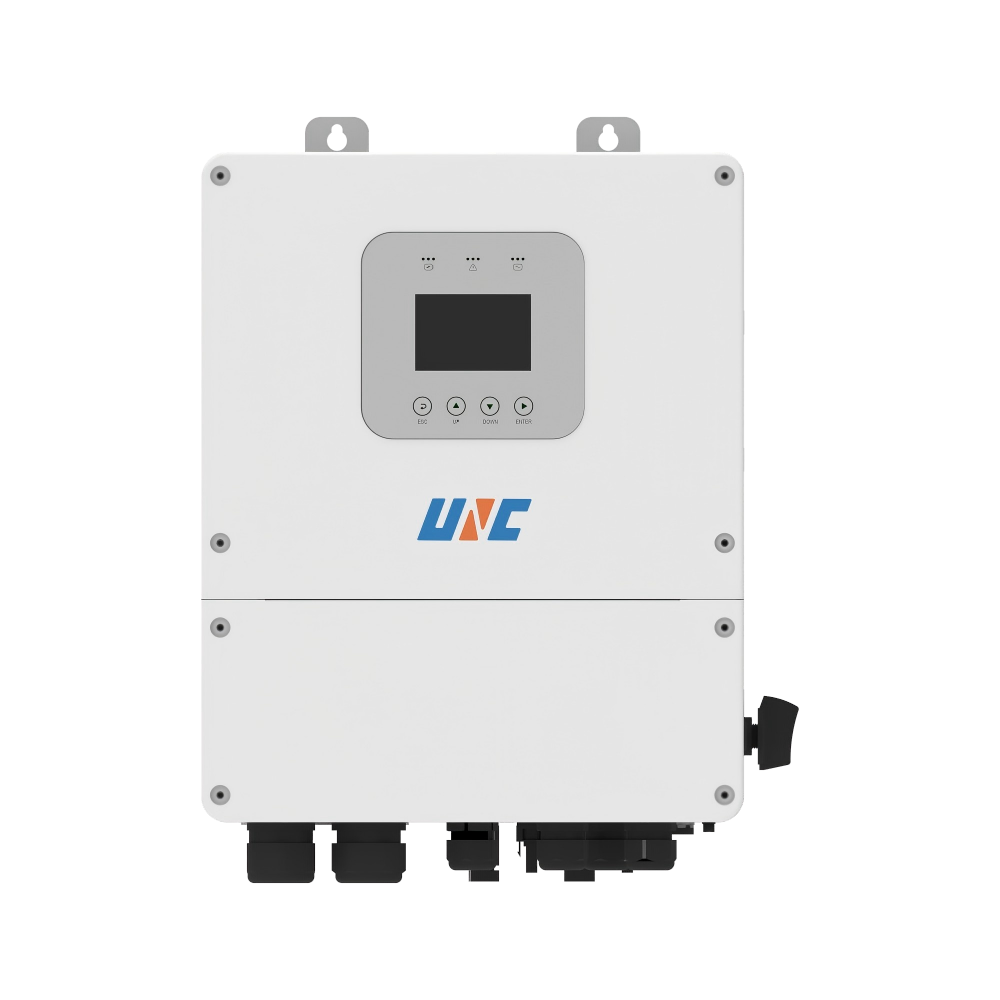

Single-phase Hybrid Inverter
Low Voltage / Forced Air Cooling
4.8–6.6kW

Household Energy Storage Hybrid Inverter
Parameter
Manual

Position：

FrontPage>Product Center>Household Energy Storage>Hybrid Inverter

Product Advantages

IP66

IP66 High Protection Level

60V

60V Low Voltage Startup

提升 保护.png
Overload Capability

2× Rated Overload Capacity

10ms

10ms Off-grid Switching

Parallel Support

Supports up to 12 units in parallel

Battery-free Start

Start Without Battery

Technical Specifications

Product ModelESS2-4.8K1P-02-LV-FESS2-6.6K1P-02-LV-F
PV String Input Data

Recommended Max. PV Power10kW13.2kW
Max. Input Voltage500V
Rated Input Voltage350V
Start-up Voltage60V
MPPT Voltage Range60-420V
Max. Input Current20A/20A
Max. Short Circuit Current27A/27A
MPPT Number / String Number per MPPT2/2
Battery Input/Output

Battery Voltage Range40-60V
Max. Charge/Discharge Current100A/100A140A/140A
Max. Charge/Discharge Power5kW/5kW7kW/7kW
BMS CommunicationRS485/CAN
Inverter Output

Rated Output Power4.8kW6.6kW
Max. Apparent Power4.8kVA6.6kVA
Rated Output Current21A30A
EPS Switching Time<10ms
Rated Output Voltage/FrequencyL/N/PE 220V/230V/240V 50Hz/60Hz
Power Factor0.8 leading ... 0.8 lagging
THDi<2%
Grid Input

Max. Input Power8kW10kW
Max. Input Current40A50A
Frequency Range40-70Hz
Rated Voltage/FrequencyL/N/PE 220V/230V 50Hz/60Hz
EPS Port

Max. Output Power (Hybrid)8kW10kW
Max. Output Power (Off-grid)4.8kW6.6kW
Max. Output Current (Hybrid)40A50A
Max. Output Current (Off-grid)21A30A
Multi-function Port

Multi-function PortSecond Load / Generator Input
Max. Input/Output Power8kW
Max. Input/Output Current40A
Rated Voltage/FrequencyL/N/PE 220V/230V/240V 50Hz/60Hz
General Data

Display3.5-inch LCD with buttons
Max. Efficiency97.5%
Protection LevelIP66
Operating Temperature-25℃~60℃（>45℃ derating）
Humidity0-100%（non-condensing）
Cooling MethodForced air cooling
Parallel Quantity12 units
Noise45db
Dimensions479*330*170mm（excluding mounting brackets and terminals）
Weight13.5kG
