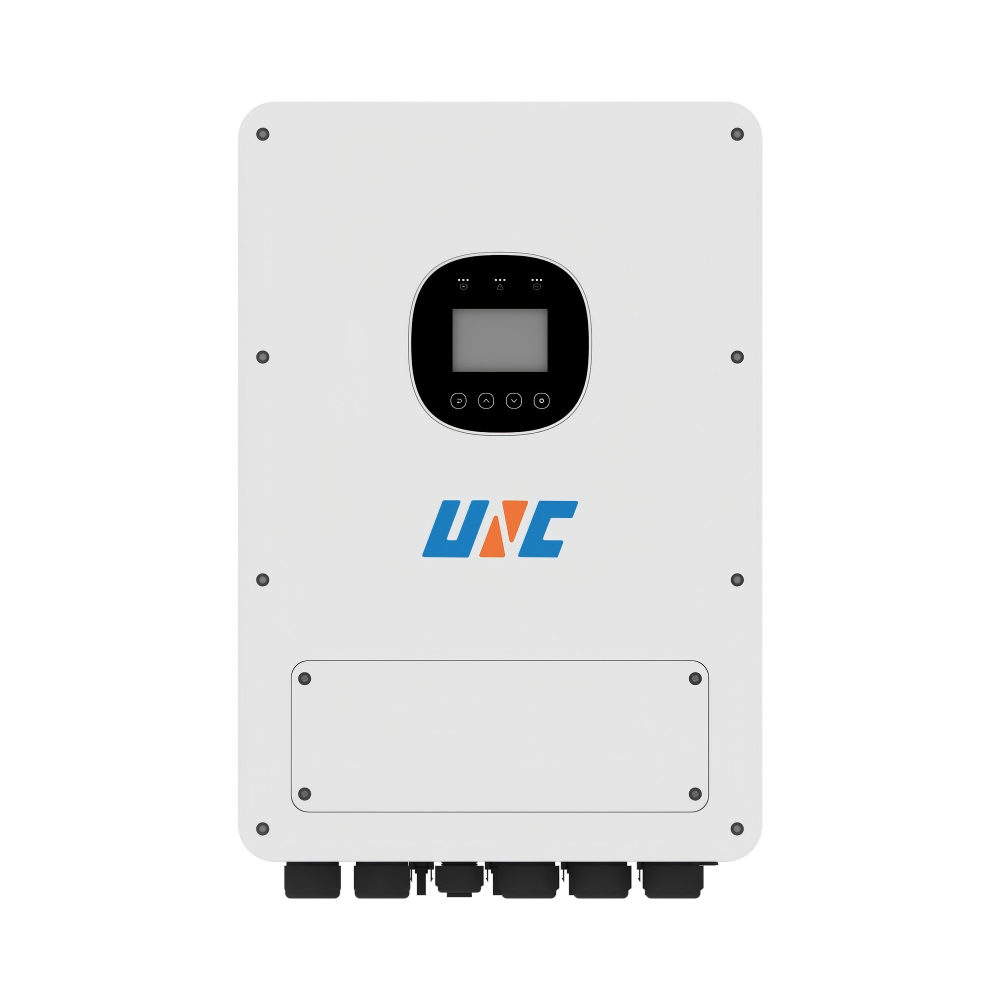

Single-phase Hybrid Inverter
Low Voltage / Forced Air Cooling
10–12kW

Household Energy Storage Hybrid Inverter
Parameter
Manual

Position：

FrontPage>Product Center>Household Energy Storage>Hybrid Inverter

Product Advantages

IP66

IP66 High Protection Level

60V

60V Low Voltage Startup

提升 保护.png
Overload Capability

2× Rated Overload Capacity

10ms

10ms Off-grid Switching

Parallel Support

Supports up to 12 units in parallel

Battery-free Start

Start Without Battery

Technical Specifications

Product ModelESS2-10K1P-02-LV-FESS2-12K1P-02-LV-F
PV String Input Data

Recommended Max. PV Power20kW24kW
Max. Input Voltage500V
Rated Input Voltage350V
Start-up Voltage60V
MPPT Voltage Range60-420V
Max. Input Current40A/40A
Max. Short Circuit Current50A/50A
MPPT Number / String Number per MPPT2/4
Battery Input/Output

Battery Voltage Range40-60V
Max. Charge/Discharge Current200A/200A240A/240A
Max. Charge/Discharge Power10kW/10kW12kW/12kW
BMS CommunicationRS485/CAN
Inverter Output

Rated Output Power10kW12kW
Max. Apparent Power10kVA12kVA
Rated Output Current45A55A
EPS Switching Time<10ms
Rated Output Voltage/FrequencyL/N/PE 220V/230V/240V 50Hz/60Hz
Power Factor0.8 leading ... 0.8 lagging
THDi<2%
Grid Input

Max. Input Power15kW18kW
Max. Input Current65A80A
Frequency Range40-70Hz
Rated Voltage/FrequencyL/N/PE 220V/230V 50Hz/60Hz
EPS Port

Max. Output Power (Hybrid)15kW18kW
Max. Output Power (Off-grid)10kW12kW
Max. Output Current (Hybrid)65A80A
Max. Output Current (Off-grid)45A55A
Multi-function Port

Multi-function PortSecond Load / Generator Input
Max. Input/Output Power15kW
Max. Input/Output Current65A
Rated Voltage/FrequencyL/N/PE 220V/230V/240V 50Hz/60Hz
General Data

Display3.5-inch LCD with buttons
Max. Efficiency97.5%
Protection LevelIP66
Operating Temperature-25℃~60℃（>45℃ derating）
Humidity0-100%（non-condensing）
Cooling MethodForced air cooling
Parallel Quantity12 units
Noise45db
Dimensions400×220×580mm（excluding mounting brackets and terminals）
Weight25kG
