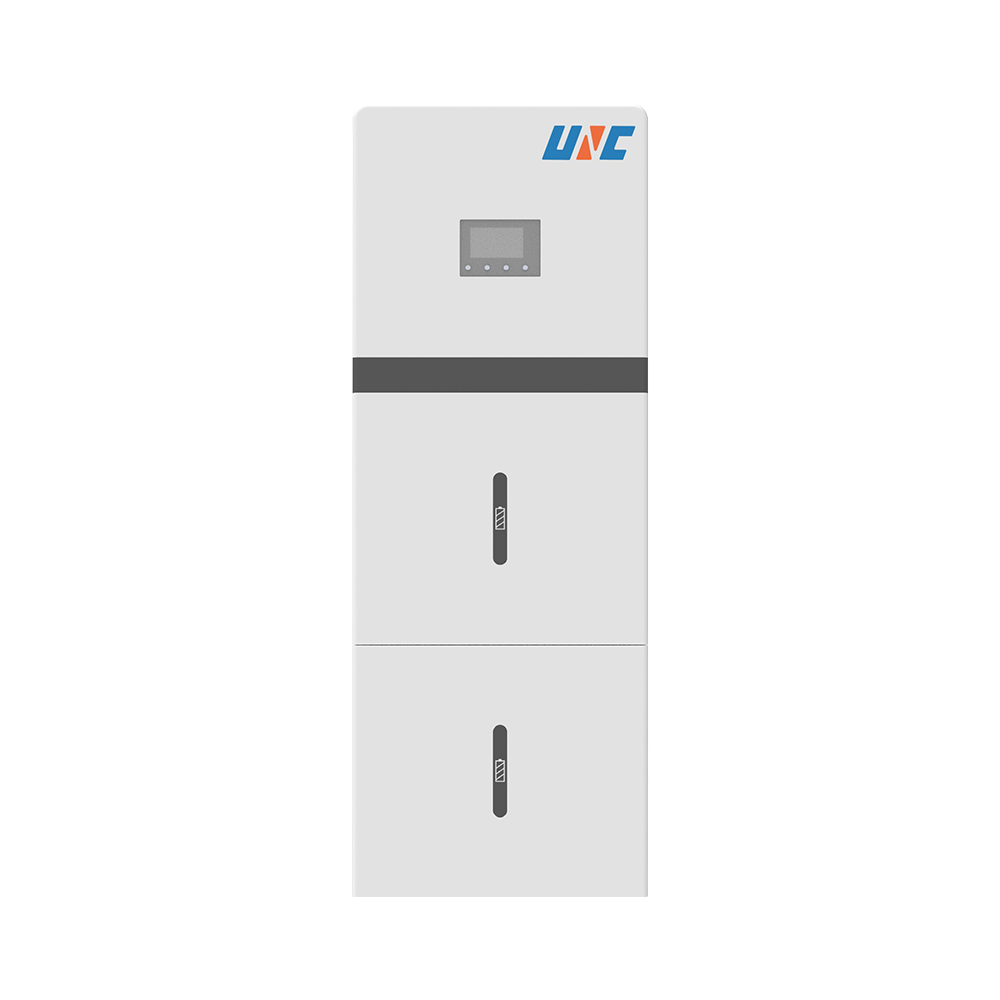

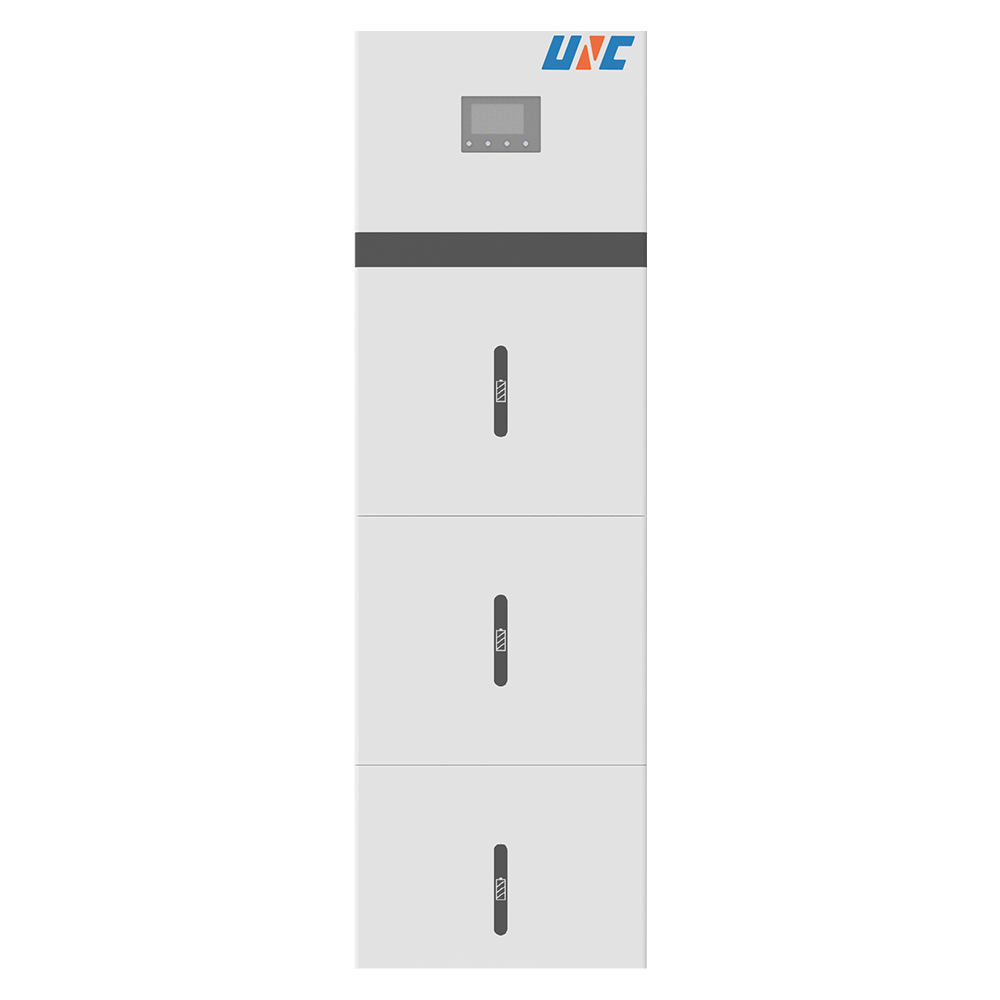

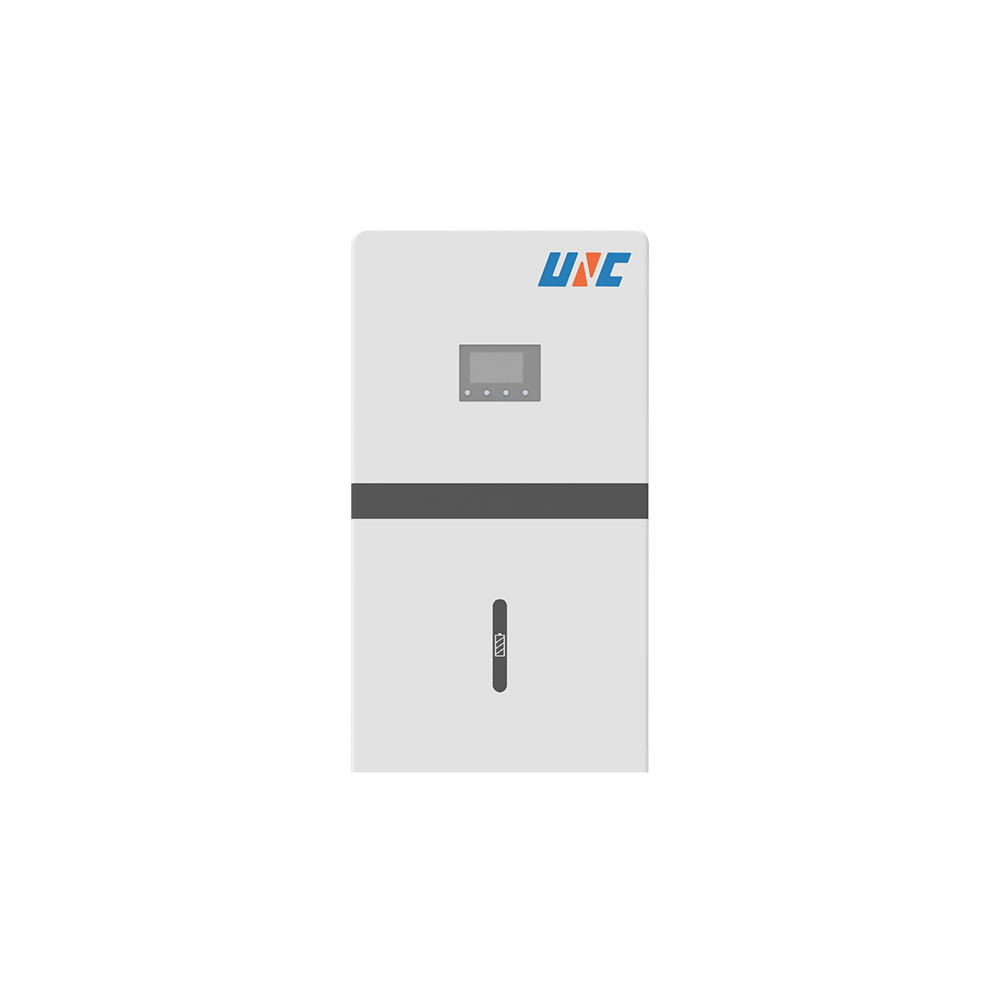

PV and Battery All-In-One

Household Energy Storage Optical Storage Integrated Machine
Parameter Manual

Position：

FrontPage>Product Center>Household Energy Storage>Optical Storage Integrated Machine

Product Advantages

120A

Up to 120A max charging /discharging current

Diesel Generator

Support communication with diesel generator

10ms

UPS level automatic switching (< 10ms)

Grid connected

Support grid connected operation

Flexible

Flexible schedule the inverter charging anddischarging time

Expandability

Support plug and play expansion

Technical Specifications

Product ModelESS1-4.6K1P-02-LV-F-AIOESS1-5K1P-02-LV-F-AIOESS1-6K1P-02-LV-F-AIO
PV String Input Data


Recommended Max. PV Power8kW
Max. Input Voltage580V
Rated Input Voltage350V
Start-up Voltage120V
MPPT Voltage Range120-520V
Max, Input Current15A/15A
Max. Short Circuit Current22.5A/22.5A
MPPT Number / String Number per MPPT2/2
Input/output Dc(Battery)


Battery Input Data42-58V
Battery Voltage Range5kW
Max. Charging/Discharging Power100A120A
CommunicationsRS485/CAN
AC Output Data


Rated Output Power4.6KW5kW6kW
Max. Apparent Output Power4.6KW5.5kW6.6kW
Rated Output Current20.9A22.7A27.3A
Max. Output Current23.2A25.2A30A
Switching Time<10ms
Rated Output Voltage/FrequencyL/NPE 220V/230V 50Hz/60Hz
Power Factor0.8leading...0.8 lagging
THDv<2%
THDi<2%
AC Input Data


Max. Input Power10kW
Max. Apparent Input Power10kVA
Max. Input Current50A
Rated Input Voltage /FrequencyL/N/PE 220V/230V 50Hz/60Hz
General Data


Dimension D*W*H610*436*257mm
Cooling ConceptForced-air
Ingress ProtectionIP65
Operating Ambient Temperature-25℃-+60℃(>45derating)
Max. Operation Altitude3000m
CommunicationsRS485/WIFI/GPRS
Battery Data


Battery TypeLithium Iron Phosphate
Battery Module Capacity5.12kWh
Max. Number of Parallel Modules4
rated voltage51.2V
Working voltage range10.40-58.4V
Single module cycle life≥6000
Mexdimum chargingicischarging cument per module100A/100A
Dimension D*W*H610*436*257mm
Cooling ConceptNaturel
Ingress ProtectionIP65
Operating Ambient Temperature-25℃-+60℃(>45 derating)
Max. Operation Altitude3000m
CommunicationsRS485/WIFI/GPRS
