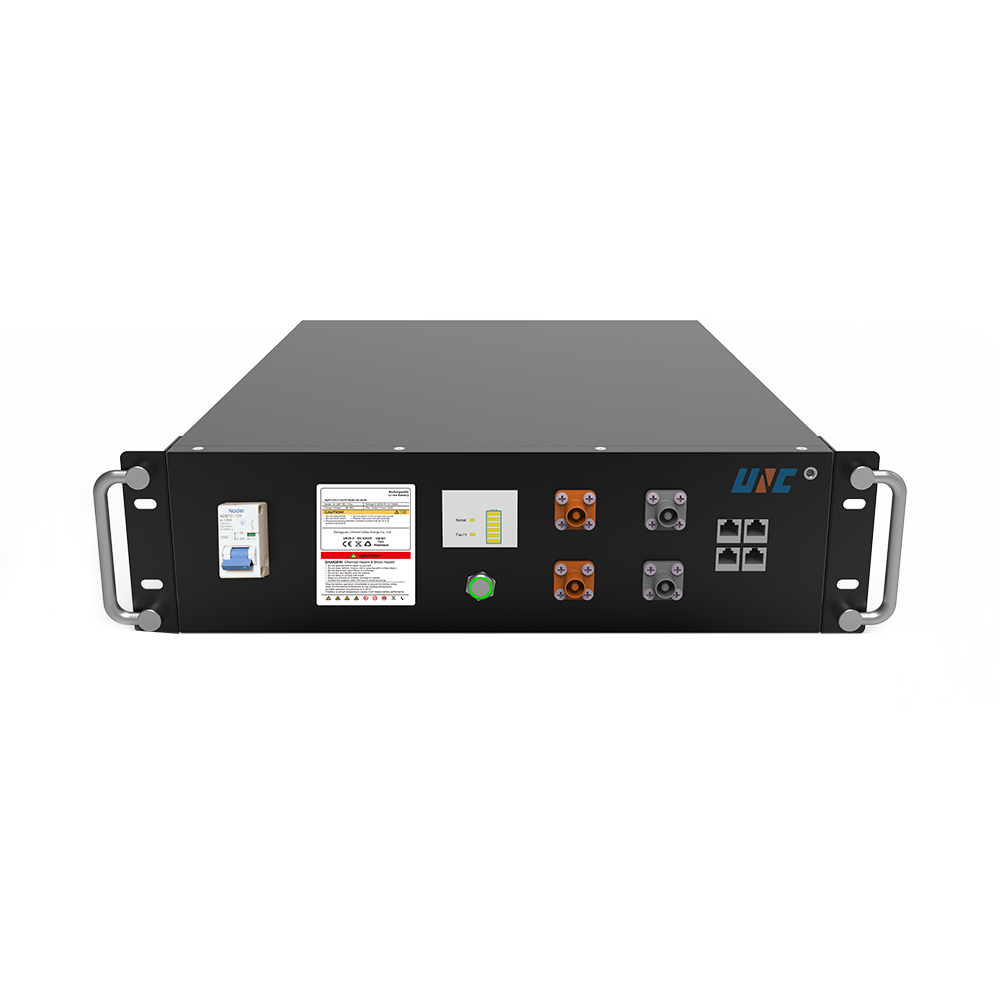

China Battery Pack(Rack Mounted)-China UNC Technology

Product Advantages

3U design

Suitable for cabinets and solar energy storage systems

LED display screen

Battery status display

Safe and reliable

A-grade lithium iron phosphate battery

Flexible capacitor

Up to 15 parallel units can be connected to expand the power capacity

Easy installation

Quickly connect the positive and negative terminals of the battery in parallel

Complete certification

Relevant supporting qualifications and certifications are complete

Technical Specifications

Model	BAT-5K-LV-R
Rated Voltage	51.2V
Rated Capacity	100Ah
Energy	5120kWh
Charging cutoff voltage	56.16V/45.6V
Instantaneous discharge current	200A/1S
Suggested charging/discharging current	50A/50A
Maximum continuous charge/discharge current	100A/100A
Charge Temperature	0~55℃
Discharge temperature	-20~60℃
Storage environment (50% charged state)	20 ℃ -45 ℃ within three months, 25+3 ℃ exceeding three months; Humidity 65+20% RH
Work Environment	Indoor
Installation Method	Rack mounted
IP Degree	IP20
Cooling Method	Natural
Cell	LiFePO4
Number of cycles	6000次80%DOD
Size(DWH)	550440130mm（3U）
Net weight/Gross weight	44.35KG/47.85KG
Communication method	RS485/CAN/RS232
Authentication	CB,IEC62619,UL,9540A,UKCA,CE-EMC,CE-GPSD,EN61619; UN38.3,MSDS
