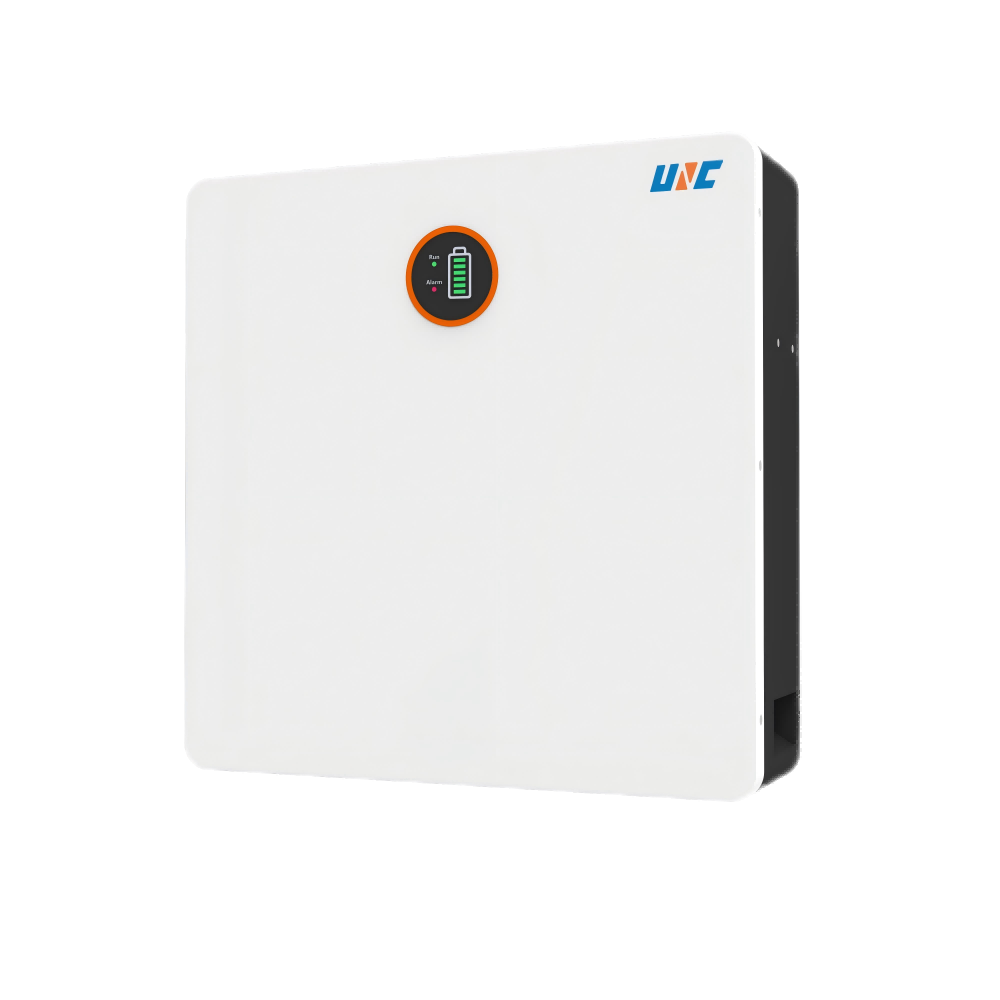

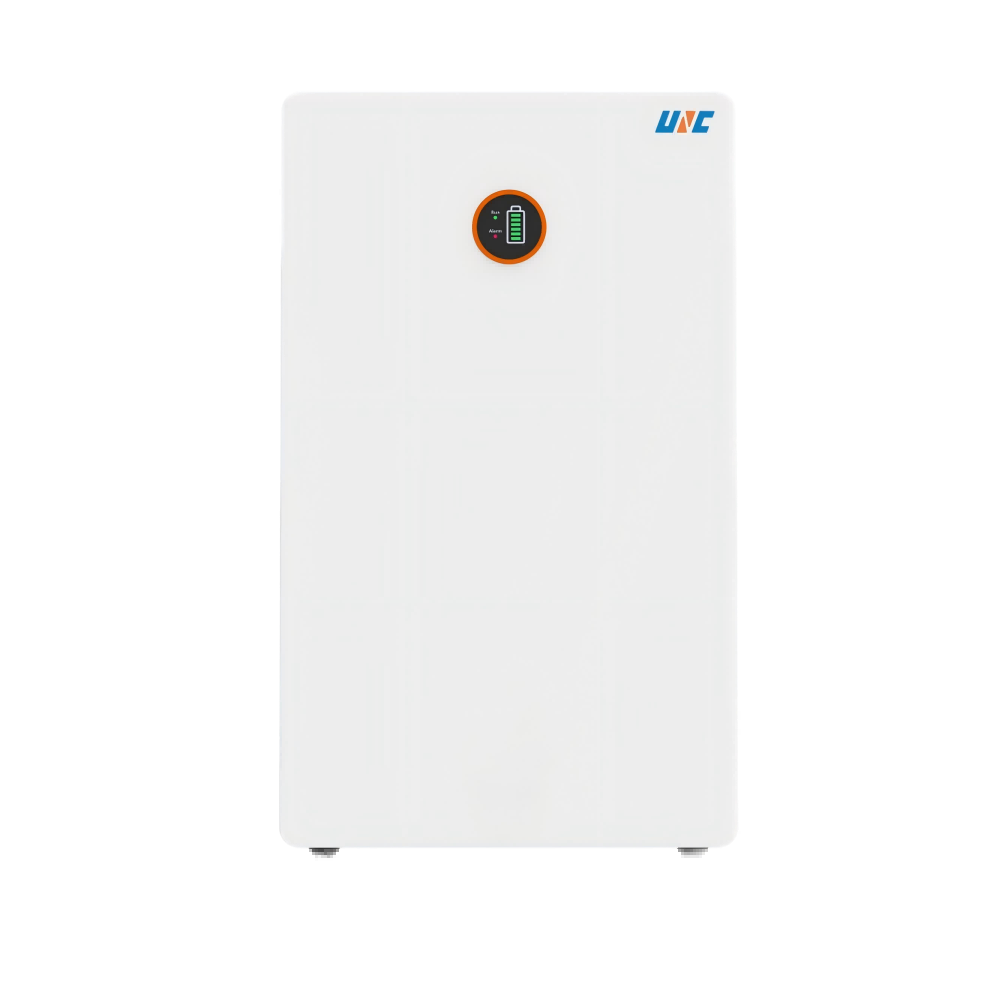

Battery Pack(Wall-Mounted)

Household Energy Storage Battery Pack
Parameter Manual

Position：

FrontPage>Product Center>Household Energy Storage>Battery Pack

Product Advantages

Unique design

Design of a new wall mounted model

Flexible capacity

Maximum capacity of 15 parallel machines

LCD Display

Display SOC status and battery information

Easy installation

Easy to install and parallel

Battery safety

Choose safe and reliable lithium iron phosphate

Recycle

The standard cycle life exceeds 6000 times

Technical Specifications

ModelBAT-5K-LV-WBAT-10K-LV-W
Rated Voltage51.2V
Rated Capacity100Ah200Ah
Energy5.12kWh10.24kWh
Charging cutoff voltage56.16V/45.6V
Suggested charging/discharging current50A/50A100A/100A
Instantaneous discharge current200A1S400A3S
Maximum continuous charge/discharge current100A200A
Charge Temperature0~55℃
Discharge temperature-20~60℃
Storage environment (50% charged state)

20 ℃ -45 ℃ within three months, 25+3 ℃ exceeding three months;

 Humidity 65+20% R

Work EnvironmentIndoor
Installation MethodWall mounted
CellLiFePO4
Number of cycles6000次@80%DOD
Cooling MethodNatural
IP DegreeIP21
AuthenticationCB,IEC62619,UL1973,UL9540A,UKCA,CE-EMC,CE-GPSD,ECN62619;UN38.3,MSDS
Size（D*W*H）442*500*142mm442*820*142mm
Net weight/Gross weight41.88KG78.85KG
Communication methodRS232/CAN/RS485
