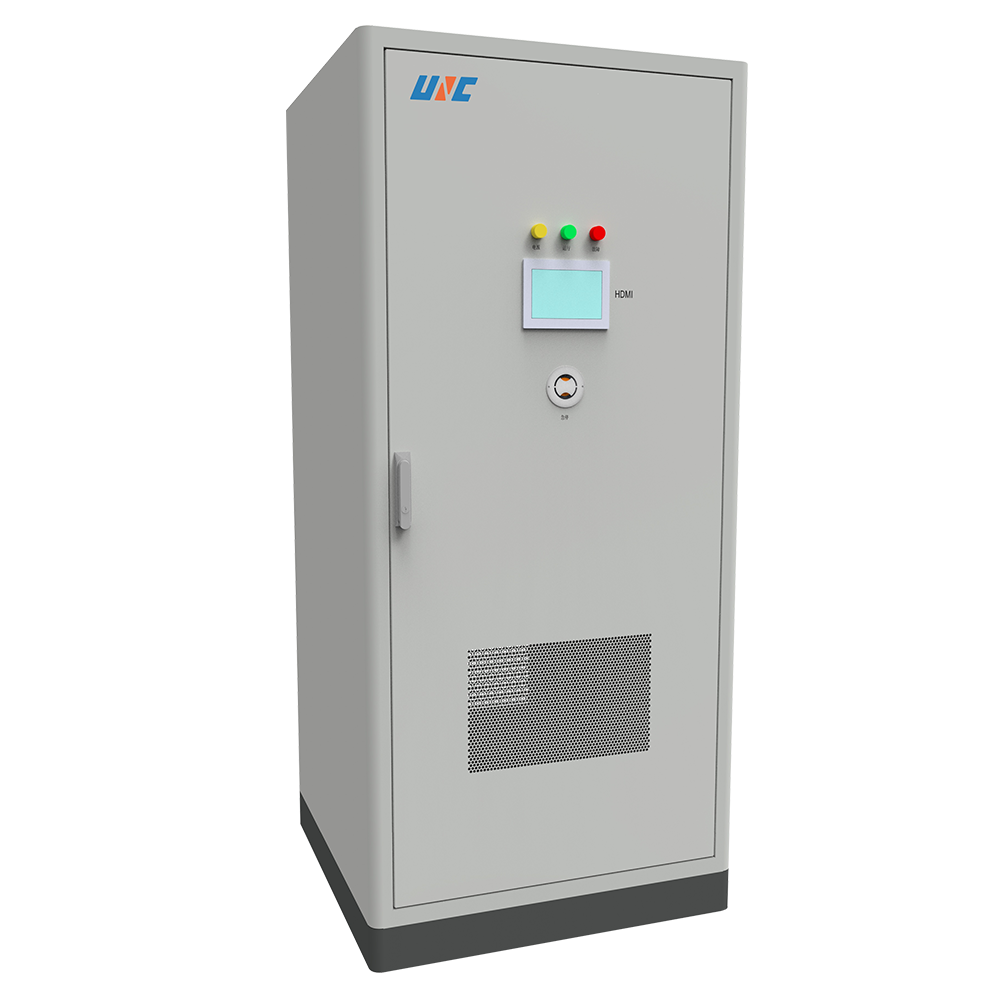

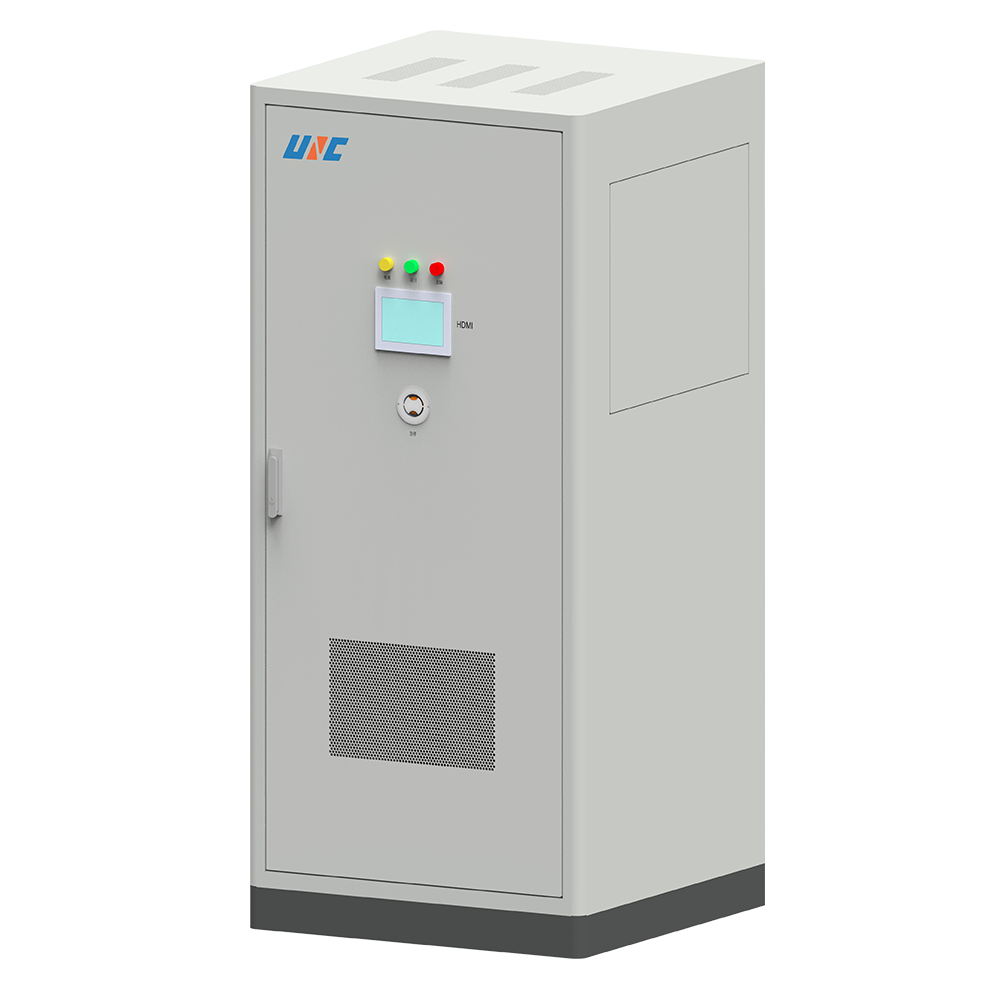

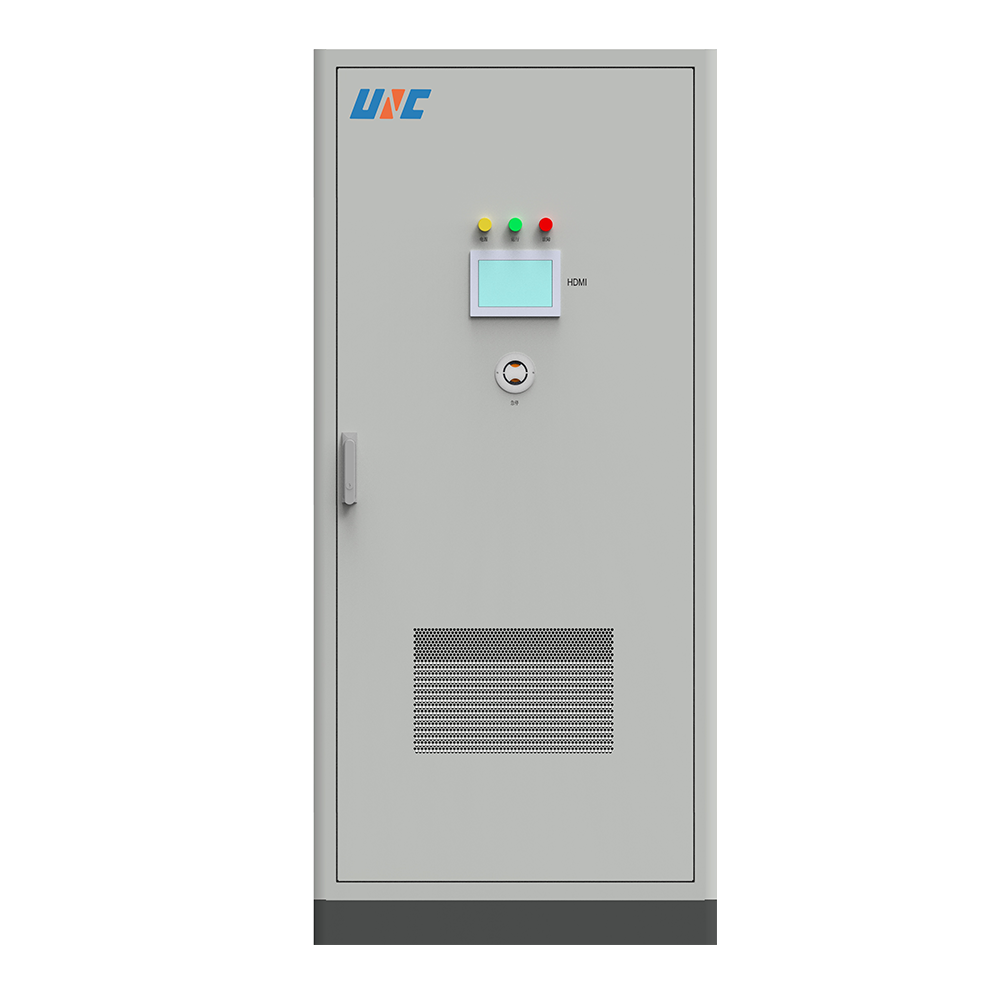

C&I Energy Storage Converter

Industrial and Commercial Energy Storage Energy Storage Inverter
Parameter Manual

Position：

FrontPage>Product Center>Industrial and Commercial Energy Storage>Energy Storage Inverter

Product Advantages

Switching Time

Switching time between on-grid and off-grid:<20ms .


SCR<1.5


Maximum efhciency>99.1%

SCR<1.5

Support parallel operation, support diesel generator connection , weak grid connection SCR<1.5


Technical Specifications

Product ModelPCS1-250KPCS1-500KPCS1-630K
DC Input Data


DC Voltage Range580-900V
Max. Input Current459A
917A
1155A
AC Input /Output Data (On-Grid Mode)


Rated AC Power250kVA
500KVA
630kVA
Max. Power275kVA
550kVA
693kVA
Rated Grid Voltage400V+15%
Rated Grid Frequency50Hz/60Hz+2.5Hz
AC Current Harmonics<3%(at rated power)
DC Component<0.5% In
Power Factor±1
AC Output Data (Off-Grid Mode)


Rated AC voltage400V±15%
AC Voltage Harmonics<3%(linear load)
DC Voltage Component<0.5% Un(linear load balance)
Rated Grid Frequency /Range50Hz/45-55Hz
General Specifications


Mode of IsolationNon isolaled
Max. Efficiency98.50%99.10%99.10%
Cooling ConceptForced air cooling
Ingress ProtectionIP20
Dimension D*W*H800*1900*800mm900*1900*900mm1100*1900*900mm
Communications


Host Computer CommunicationMOdBusTCP/RTU.CAN2.0
InterfaceNetwork port、RS485、CAN
