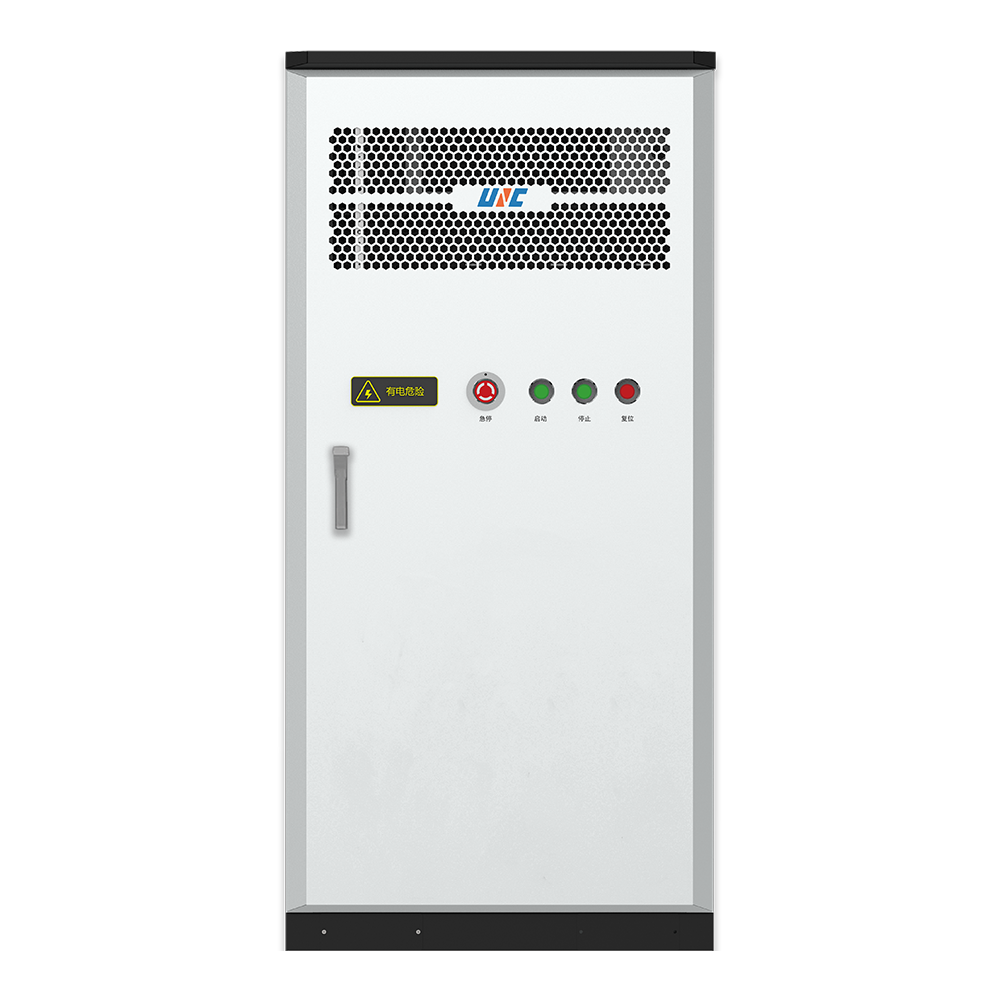

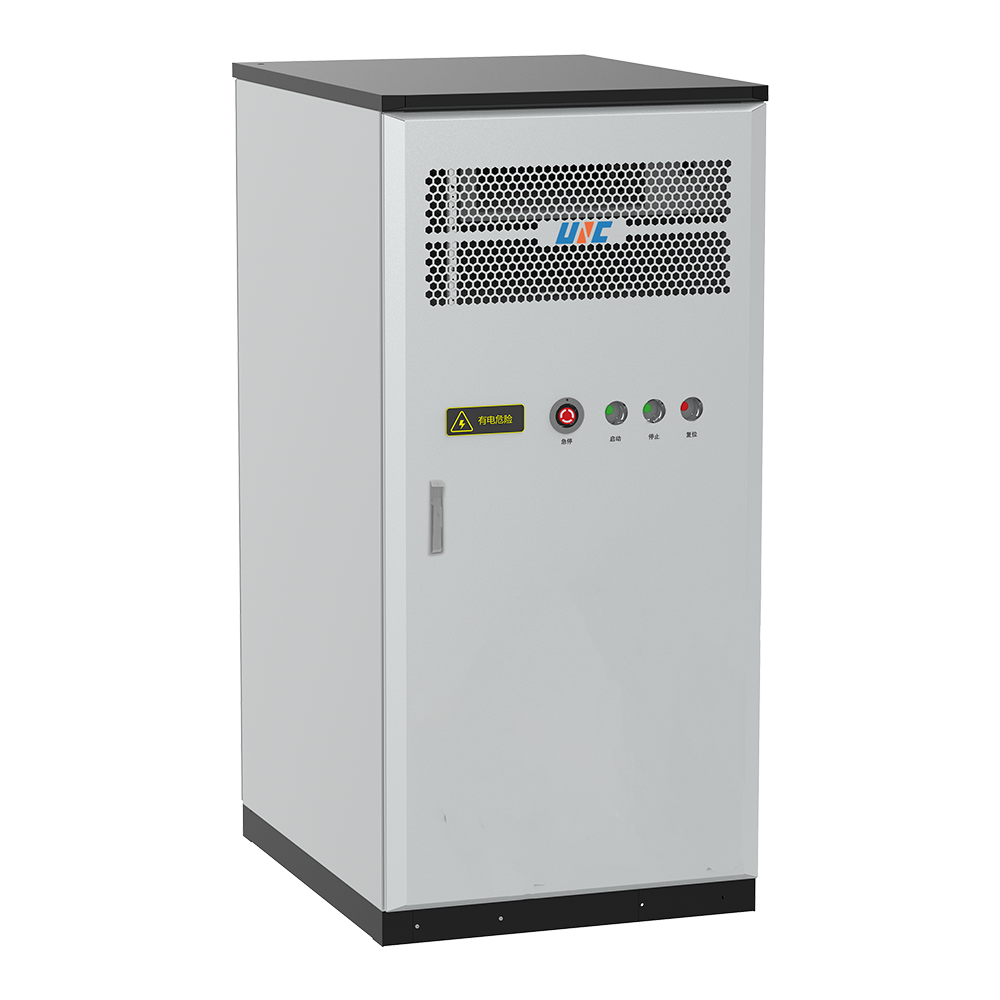

China C&I Energy Storage System-China UNC Technology

Product Advantages

Safe and Reliable

High-quality battery cells with long cycle life, superior performance and good consistency, cycle life ≥ 6000 times

10 Years

Design lifespan>; 10 years

Integration

Integrated battery PACK, PCS, EMS, and fire protection system in one cabinet

Quick response

Self-developed BMS, quick response and dispatch

EMS

Self-developed EMS, fully monitoring and control

Operational Strategy

Choose the optimal operating strategy to achieve integration of source, network, load, and storage

Technical Specifications

Product Model	ESS1-100K/233kWh
Rated AC Power	100kW
Max. AC Power	110kW
Rated Grid Voltage	50Hz/60Hz
DC Injection Current	< 0.5%n
Battery Type	LFP
Single Battery Pack Capacity	46.59
Number of Battery Pack	5
Battery System Capacity	233KWh
Run time	2h
Cycle life	>6000
Max. Efficiency	99.03%
Dimension DWH	100022001350
Weight	2.7T
Mode of Isolation	Not isolation
Ingress Protection	IP54
Operating Ambient Temperature	-20~55°C(>45°CReduced operation)
Cooling Concept	Forced air cooling
Communications	RS485,CAN Bus，LAN

Recommended Products

Single-phase Hybrid
Inverter(grid-connected)
3-6kW

Household Energy Storage | Hybrid Inverter

Up to 120A max charge/discharge current
Up to 15A MPpT current input to support high-power solar panels
Support off-grid application of diesel generators Ups level switching time (<10ms) supporting critical loads all the time
Flexible schedule for inverter charging and discharging time

MORE

Single Phase Hybrid
Inverter(grid-connected)
6-10kW

Household Energy Storage | Hybrid Inverter

Up to 208A max chargedischarge current
Up to 44A of MPPT current input to support high-power solar panels
Supports pure off grid applications with generator
Support intelligent load and motor load connection
Degree of protection:lP66
UPS level switching time (<10ms) supporting critical loads all the time

MORE

Three Phase Hybrid
Inverter(on-grid)
8-12kW

Household Energy Storage | Hybrid Inverter

UPS level switching time (<10ms) supporting critical loads all the time
Flexible schedule for inverter charging and discharging time
Support three-phase imbalance on backup output port
Degree of protection:IP66
2 MPPT and 4 DC input; Max 26A DC input current

MORE

Three Phase Hybrid
Inverter(on-grid)
15-20kW

Household Energy Storage | Hybrid Inverter

Up to 50A max charge/discharge current
IP66 high ingress protection
UPS level switching time (<10ms) supporting critical loads all the time
Support three-phase imbalance on backup output port
Supports up to 16 parallel machines
Supports pure off grid applications with generator

MORE

Single Phase Hybrid
Inverter (off grid)
4-10.2kW

Household Energy Storage | Hybrid Inverter

Pure sine wave solar inverter(off Grid)
Power factor 1.0
Inverter can run without battery
Automatic activation with built-in lithium battery
Built in 160A(7.2kw/8.2kw)/180A(10.2kw)
High PV input voltage range(90~500VDC)
One-key restoration to factory Settings

MORE

C&I Energy Storage Converter Module

Industrial and Commercial Energy Storage | Energy Storage Integrated Cabinet

Three level modular design, bidirectional energy conversion
On demand allocation, peak shaving and valley filling, local automatic operation
No vulnerable parts, modular with N+1 redundancy

MORE

C&I Energy Storage Converter

Industrial and Commercial Energy Storage | Energy Storage Inverter

Switching time between on-grid and off-grid:<20ms
Maximum efhciency>99.1%
Support parallel operation, support diesel-electric connection,weak grid connection SCR<1.5

MORE

Three-phase Photovoltaic Inverter10-25K

Photovoltaic System | Household Three-Phase Photovoltaic Inverter

IP66 highprotection level
MPPT curent 32A, suitable for high-power components
IP66 highprotection level
Adaptive complex power grid
Intelligent remote monitoring and maintenance to enhance operational efficiency
Support anti backflow control

MORE

Three-phase photovoltaic inverter25-50K

Photovoltaic System | Industrial And Commercial Three-Phase Photovoltaic Inverter

Maximum MPPT current 40A, suitable for high power anddouble-sided groups
Built-in PlD repair function to improve the power generationperformance of components
IP66 high protection level
Quick-plug terminal design, simple and fast wiring
OTA online fmware remote upgrade, worry-free system update

MORE
