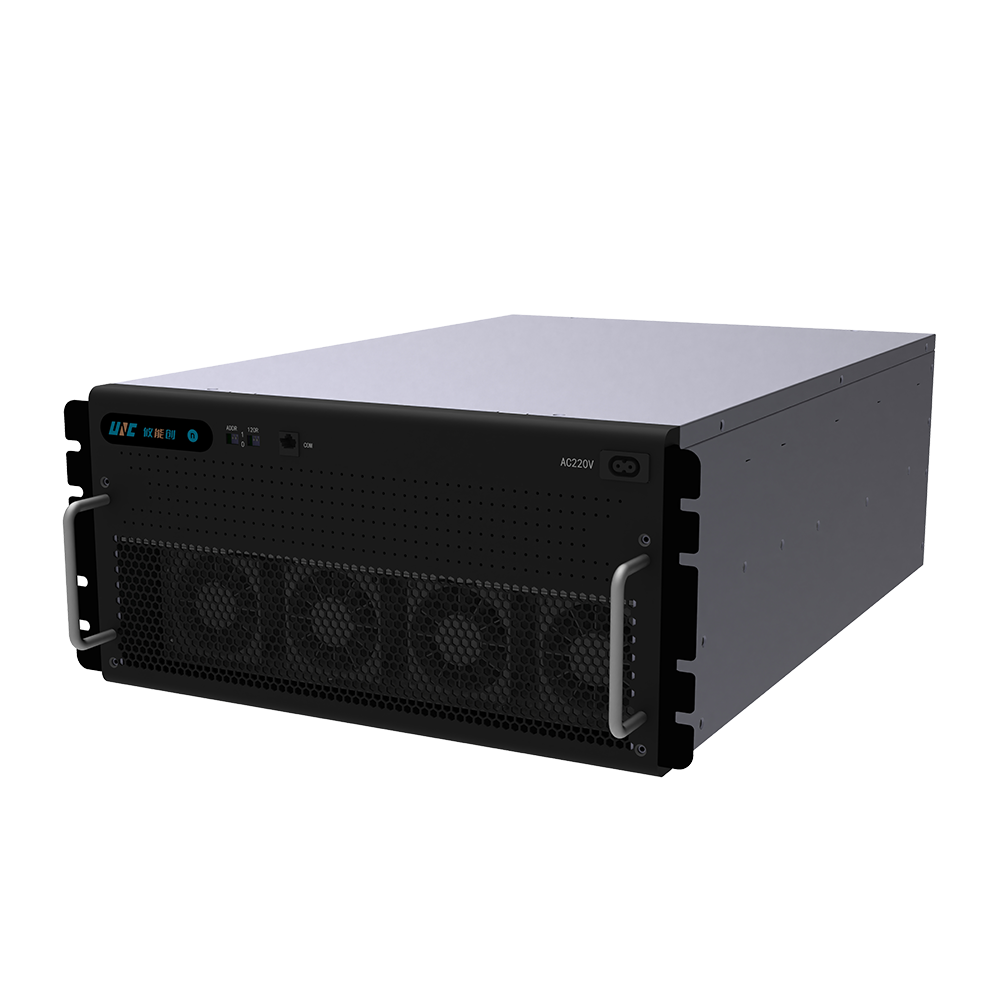

C&I Energy Storage Converter Module

Industrial and Commercial Energy Storage Energy Storage Integrated Cabinet
Parameter Manual

Position：

FrontPage>Product Center>Industrial and Commercial Energy Storage>Energy Storage Integrated Cabinet

Product Advantages

Modular Design

Three level topology technology ,bidirectional energy conversion .

Flexibility

Easy to configure and integrate

No vulnerable parts

No vulnerable parts, modular with N+1 redundancy

Technical Specifications

Product modelPCS1-100K
DC Input Data
DC Voltage Range580-950V
Max. Input Current175A
AC Input /Output Data (On-Grid Mode)
Rated AC Power100kVA
Max. Power110kVA
Rated Grid Voltage400V+15%
Rated Grid Frequency50Hz/60Hz±2.5Hz
AC Current Harmonics<3%(At rated power)
DC Component<0.5% In
Power Factor±1
AC Output Data (Off-Grid Mode)
Rated AC voltage400V±15%
AC Voltage Harmonics<3%(Linear Load)
DC Voltage Component<0.5% Un(Linear load balancing)
Rated Grid Frequency /Range50Hz/45-55Hz
General Specifications
Mode of IsolationNon isolated
Max. Efficiency98.50%
Cooling ConceptForoed air cooling
Ingress ProtectionIP20
Dimension D*W*H485*220*780mm
Communications
Host Computer CommunicationModBusRTU.CAN2.0
InterfaceRS485/CAN
