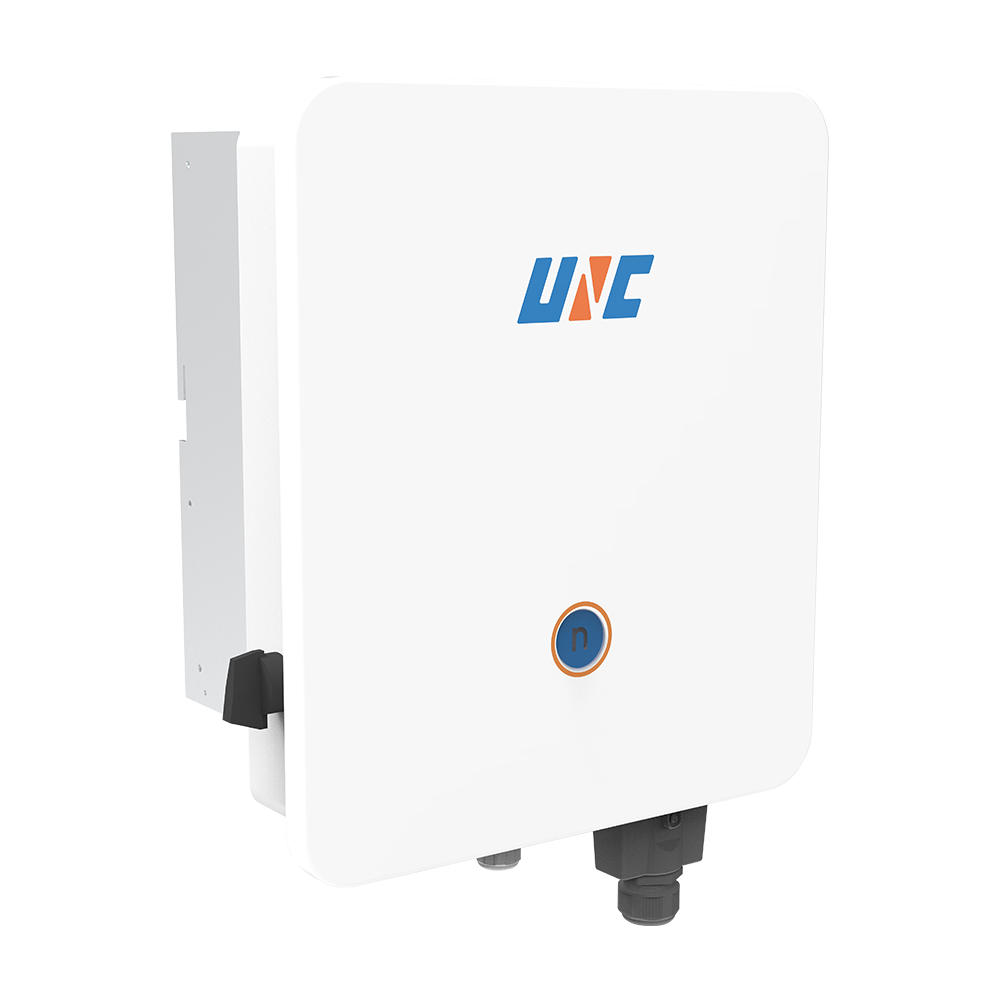

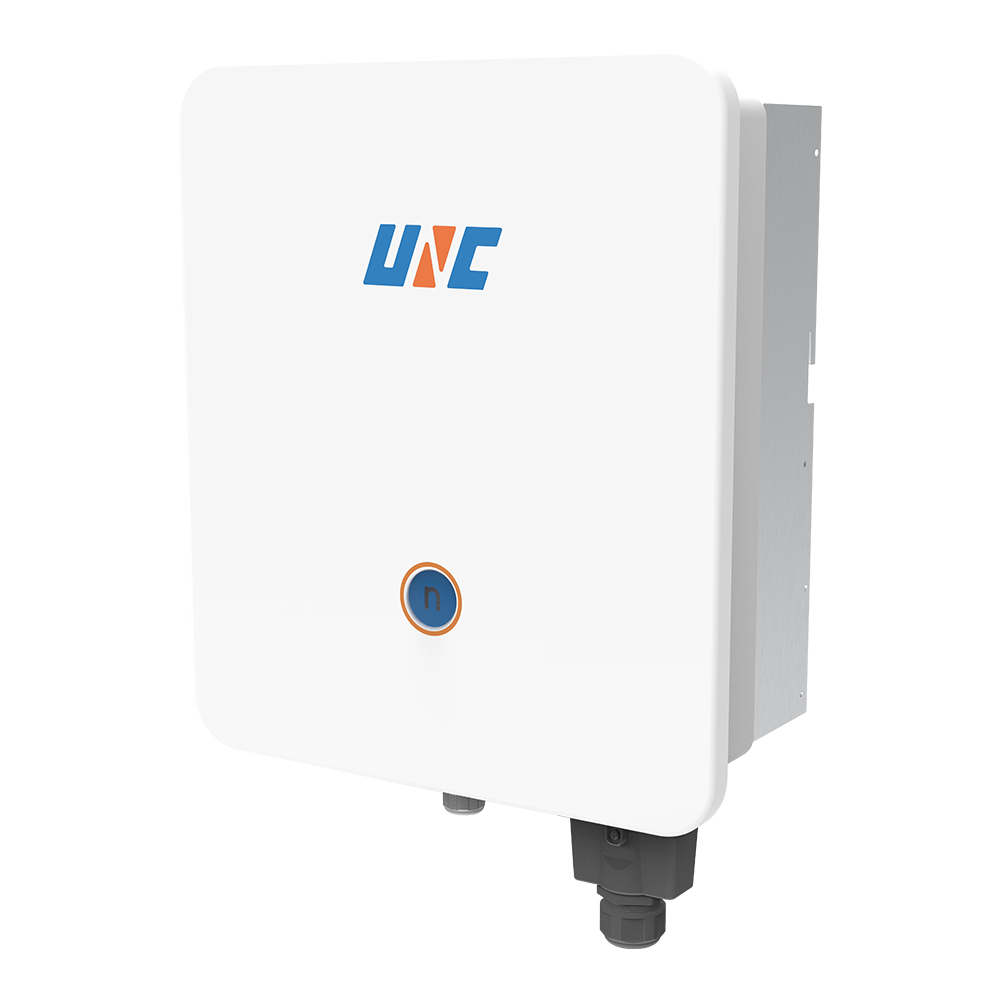

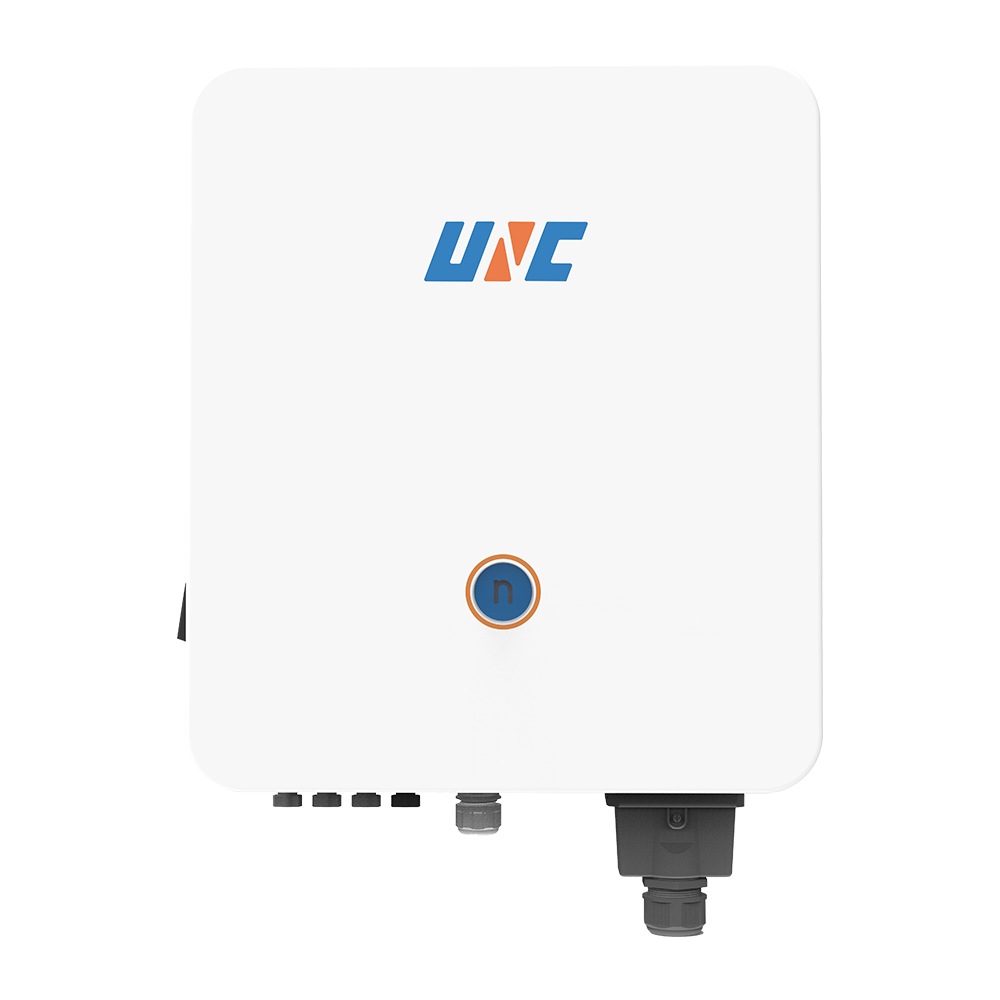

Three-phase Photovoltaic Inverter10-25K

Photovoltaic System Household Three-Phase Photovoltaic Inverter
Parameter Manual

Position：

FrontPage>Product Center>Photovoltaic System>Household Three-Phase Photovoltaic Inverter

Product Advantages

98.5%

Max. efficiency of 98.5%

32A

MPPT current can reach up to 32A, suitable for high-power panels

IP66

IP66 high level protection rating

Self-adaption

Self-adaption to complex power grids

Efficiency

Smart remote monitoring and maintenance, enhancing operational efficiency.

Anti-islanding Protection

High safety level

Technical Specifications

Product ModelRSI-10K3PRSI-12K3PRSI-13K3PRSI-15K3PRSI-17K3PRS1-20K3PRSI-23K3PRSI-25K3P
PV String Input Data







Recommended Max. PV Power12kW14.5kW15.6kW18kW20.4kW24kW27.6kW30kW
Max. Input Voltage1000v
Rated Voltage600v
Start-up Voltage180V
MPPT Voltage range160-900V
Max. Input Current16A/16A
Max. Short-Circuit Current25A/25A
MPPT Number / String Number per MPPT2/2
AC Output Data







Rated Output Power10kW12kW13kW15kW17kW20kW23kw25kW
Max. Apparent Power11kVA13.2kVA14.3KVA16.5kVA18.7kVA22kVA25.3KVA27.5KWA
Max. Active Power11KVA13.2kW14.3kW16.5kW18.7kW22kw25.3kW27.5kW
Rated Output Current15.2A18.2A19.8A22.8A25.8A30.4A34.9A38.0A
Max. Output Current16.7A20.1A21.7A25.1A28.4A33.5A38.4A41.8A
Rated Voltage3LN/PE,220/380V
Rated Frequency50Hz
Power Factor>0.99(0.8 lead-0.8lag)
THDi<3%rated power
Efficiency







Max. Efficiency98.30%98.40%98.50%
Euro Efficiency97.60%97.70%97.90%
Protection







PV Switchhave
Anti-islanding Protectionhave
AC Over-current Protectionhave
AC Short-circuit Protectionhave
DC Reverse-polarity Protectionhave
Surge Protectionhave
Insulation Impedance Detectionhave
Temperature Protectionhave
DC Arc Fault Protectionhave
General Data







Dimensions（W*H*D）406mmx468mmx198mm
Weight20kg22kg
Ingress ProtectionIP66
TopologyWithout transformer
Self-consumption at night<1W
Cooling ConceptNatural coolingIntelligent redundant air cooling
Operating Ambient Temperature/Humidity-25-+60℃/0-100%
Max. Operation Altitude3000m
Grid RegulationNBIT 32004
Safety /EMCIEC62109-1/21EC61000-6-1/-2/-3-4.NB/T32004
Display & Communication







DisplayBluetooth&LEDindicator, LCD display (optional)
CommunicationRS485, WIFl (optional), GPRs (optional)
