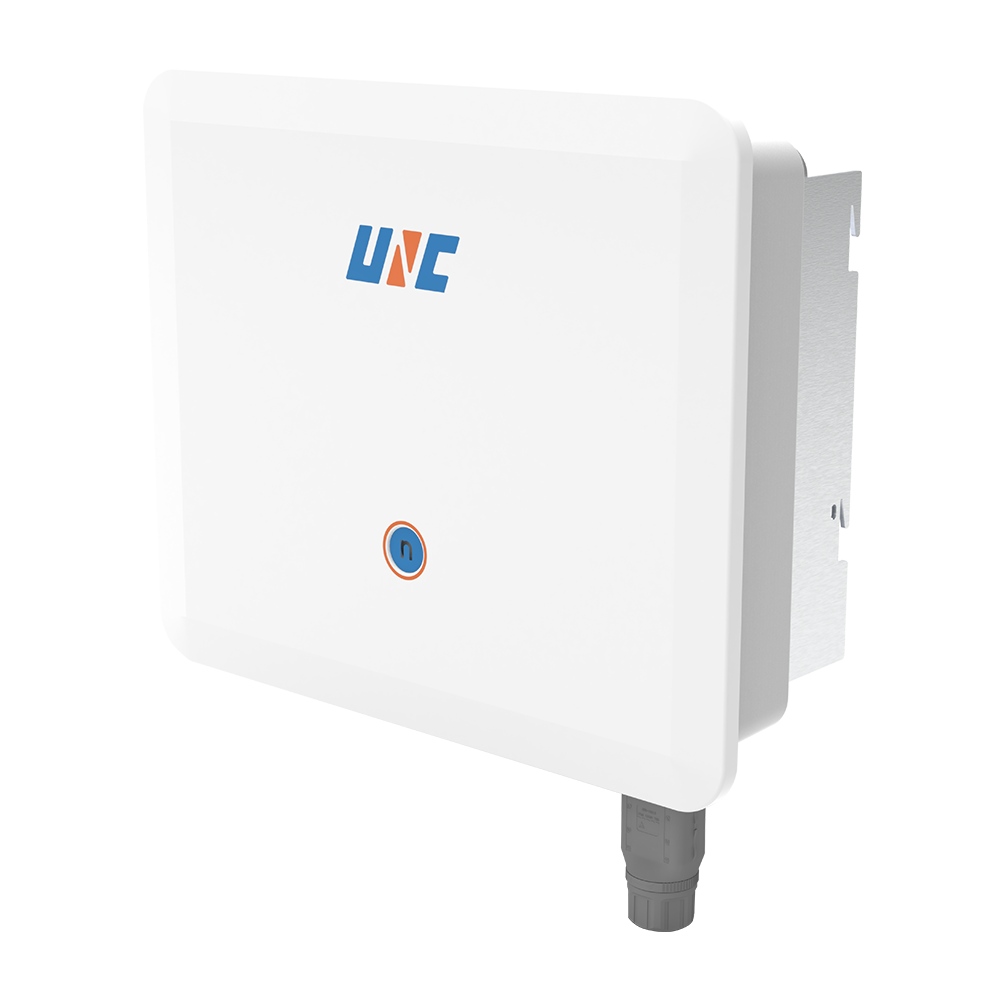

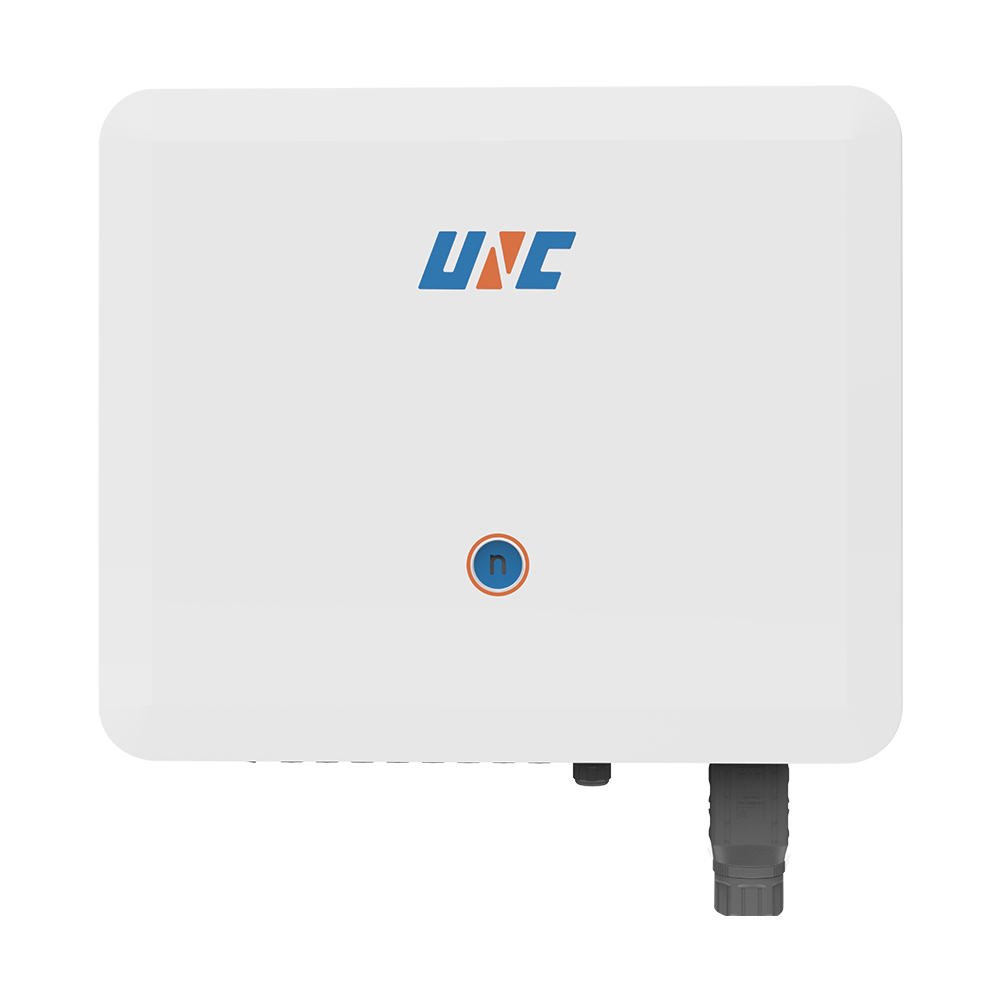

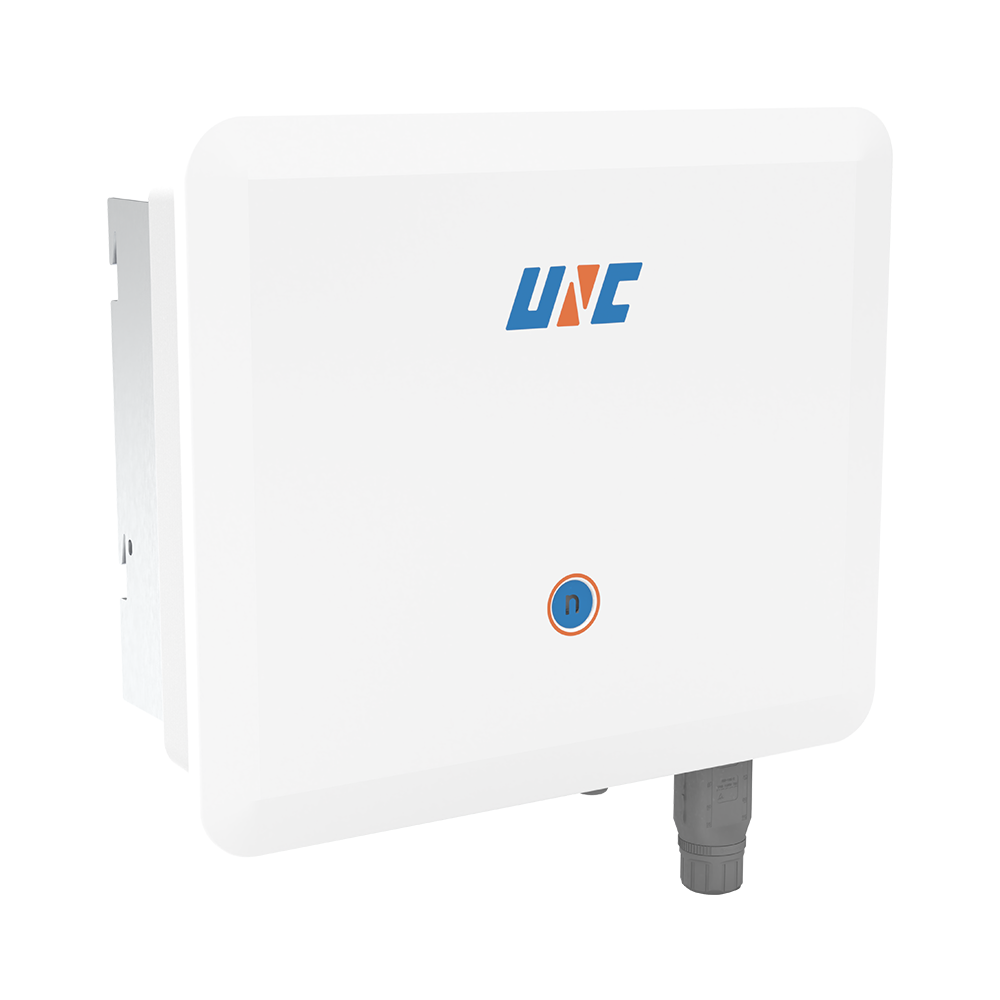

Three-phase photovoltaic inverter25-50K

Photovoltaic System Industrial And Commercial Three-Phase Photovoltaic Inverter
Parameter Manual

Position：

FrontPage>Product Center>Photovoltaic System>Industrial And Commercial Three-Phase Photovoltaic Inverter

Product Advantages

40

Max. MPPT current 40A, suitable for high power and bifiacial PV modules

Anti-PID

Improve the power generation performance of PV modules

IP66

IP66 high level protection rating

Quick wiring

Fast-plug terminal design for simple and efficient connections

OTA online

Over-the-Air (OTA) remote upgrades and maintenance

Technical Specifications

Product ModelTSI-30K3P-03-CNTSL33K3P-03-CNTSI-36K3P-03-CNTSI-40K3P-03-CNTSI-50K3P-03-CNTSI-60K3P-03-CN
PV String Input Data





Recommended Max. PV Power45kW49.5kW54kW60kW70kW80kW
Max. Input Voltage1100v
Rated Voltage620v
Start-up Voltage250V
MPPT Voltage range200-1000V
Max. Input Current32A*3
32/32/32/40A
32/32/32/40A
Max. Short-Circuit Current50A*3
50A*4
50A*5
MPPT Number / String Number per MPPT3/6
4/8
5/10
Rated Output Power





Rated Output Power30kW33kW36kW40kW50kW60kW
Max. Apparent Power33kVA36.3kVA39.6KVA44kVA55kVA66kVA
Max. Active Power33kW36.3kW39.6kW44kW55kW66kw
Rated Output Current45.6A50.1A54.7A60.8A72.5A85.9A
Max. Output Current50.2A55.1A60.2A66.9A79.7A95.6A
Rated Voltage3L/N/PE，400V(Voltage range320V-480V)
Rated Frequency50Hz(Allowable frequency range45-55H2)
Power Factor>0.99(0.8 lead-0.8 lag)
THDi<3%rated power
Efficiency





Max. Efficiency98.60%98.40%
98.50%
Euro Efficiency98.00%97.70%
97.90%
Protection





Residual Current (RCD) Protectionhave
Anti-islanding Protectionhave
DC Reverse-polarity Protectionhave
AC Short-circuit Protectionhave
PV Switchhave
Surge ProtectionClass ll AC/Class ll DC
Insulation Impedance Detectionhave
Over-voltage LevelClass ll AC/Class ll Dc
General Data





Dimensions（W*H*D）585mmx490mmx260mm675mmx590mmx275mm
weight32kg50kg
Ingress ProtectionIP66
TopologyWithout transfomer
Self-consumption at night<1W
Cooling ConceptInteligent air cooling
Operating Ambient Temperature/Humidity-25~+60℃/0~100M(No refrigeration)
Max. Operation Altitude4000m
Grid RegulationNB/T 32004
Safety /EMCIEC62109-1/-2,IEC61000-6-1/-2/-3/-4,NB/T 32004
Display & Communication





DisplayLED + APP
CommunicationRS485/4G
