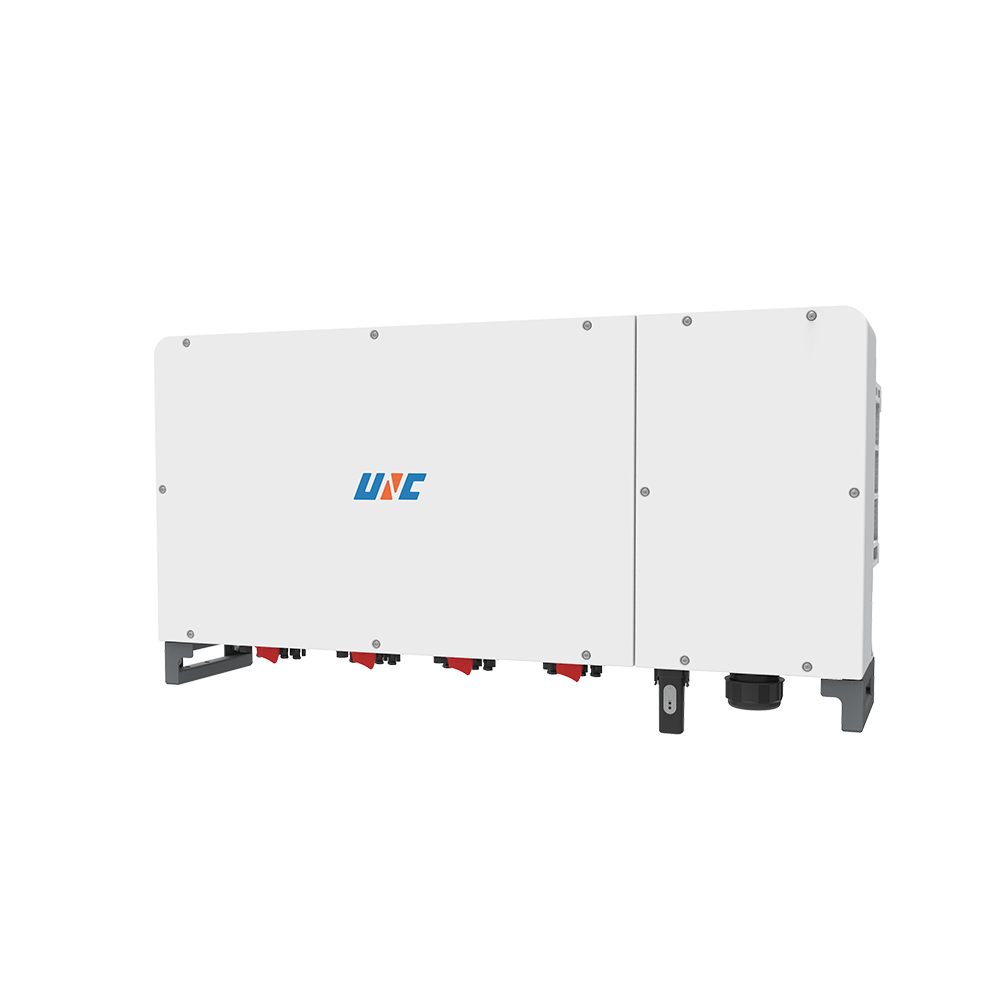

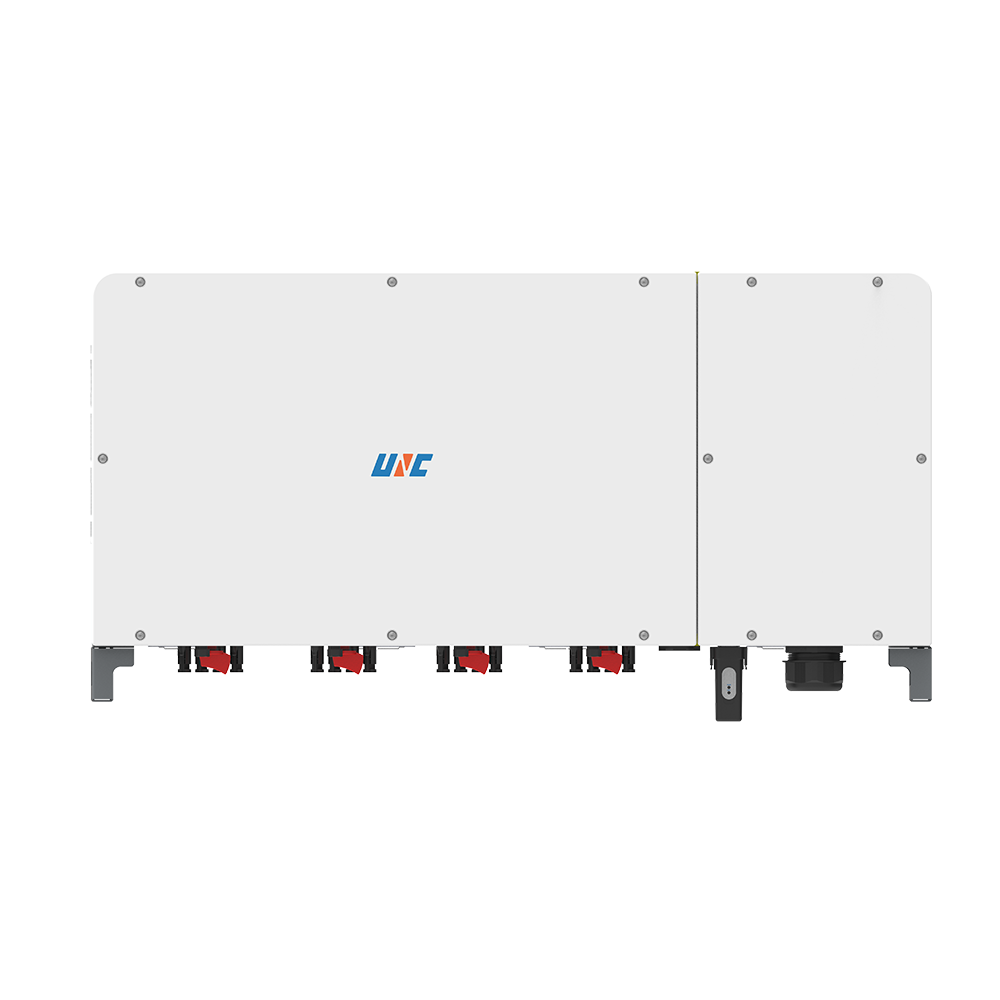

Three-phase Photovoltaic Inverter80-110K

Photovoltaic System Industrial And Commercial Three-Phase Photovoltaic Inverter
Parameter Manual

Position：

FrontPage>Product Center>Photovoltaic System>Industrial And Commercial Three-Phase Photovoltaic Inverter

Product Advantages

98.7%

Max. Efficiency up to 98.7%

1.5 Times

Support 150% recommended max. PV power input

IP66

IP66 high level protection rating

DC arc fault

Intelligent DC arc fault detection （optional）

Multiple operating modes

Includes frequency regulation, P-F, Q-U, and various other modes

Technical Specifications

Product ModelTS1-80K3P-08-CNTS1-100K3P-10-CNTSI-110K3P-10-CN
PV String Input Data


Recommended Max. PV Power120kw
150kW
165kW
Max. Input Voltage1100V
Start-up Voltage180V
Rated Voltage580V
MPPT Number8
8
8
String Number per MPPT2
2
2
Max. Input Current40A*4+32A*4
40A*4+32A*4
40A*4+32A*4
Max. Short-Circuit Current50A*8
50A*8
50A*8
AC Output Data


Rated Output Power80kW100kW110kW
Max. Apparent Power88kVA110kVA121KVA
Max. Output Current3*128A3*160A3*176A
Rated Output Current3/N/PE,400V
Voltage Range300V-480V
Rated Frequency50Hz
Frequency Range45Hz-55Hz
Power Factor>0.99(0.8 leading - 0.8 lagging)
THDi<3%
DC Injection Current<0.5%
Efficiency


Max. Efficiency98.7%98.7%98.7%
Euro Efficiency98.1%98.1%98.1%
China Efficiency98.1%98.1%98.1%
Protection


DC Reverse-polarity ProtectionAvailable
AC Short-circuit ProtectionAvailable
AC Over-current ProtectionAvailable
AC Over-voltage ProtectionAvailable
Insulation Impedance DetectionAvailable
Residual Current (RCD) ProtectionAvailable
Surge ProtectionLevel ll lightning protection
Anti-islanding ProtectionAvailable
